Home >> Kia >> 2025 >> Seltos EX, FWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 1.6L >> Fuel Pump Control Module (FPCM) >> Removal And Installation >> Removal

Removal And Installation: Removal

  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

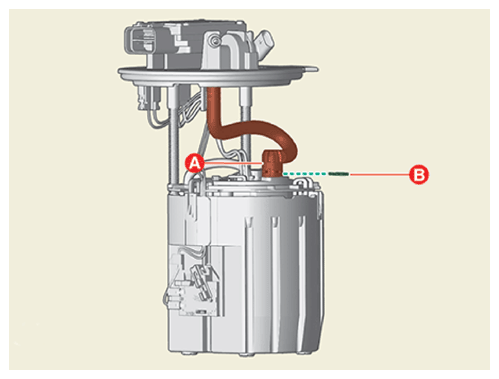

  2. Separate the fuel feed hose (A) after removing the clip (B).
    G16423781Courtesy of KIA MOTORS AMERICA, INC.

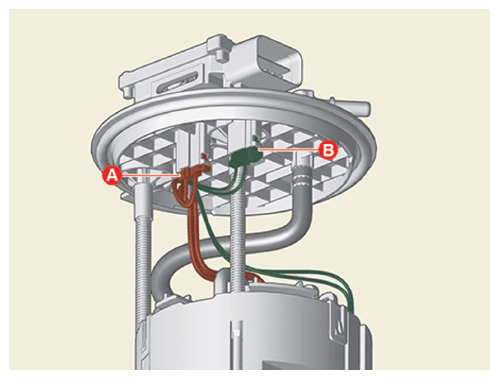

  3. Disconnect the fuel pump connector (A) and fuel sender connector (B).
    G16423782Courtesy of KIA MOTORS AMERICA, INC.

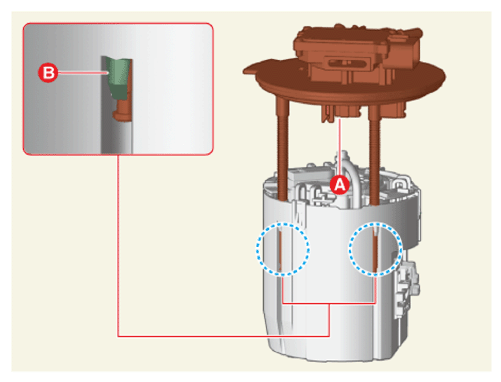

  4. Remove the plate cover assembly (A) by releasing the fixing hook (B).
    G16423783Courtesy of KIA MOTORS AMERICA, INC.

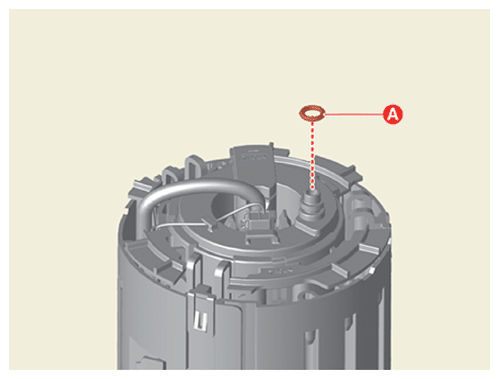

  5. Remove the plate cover O-ring (A).
    G16423784Courtesy of KIA MOTORS AMERICA, INC.
