Removal And Installation: Installation

  1. Install in the reverse order of removal.

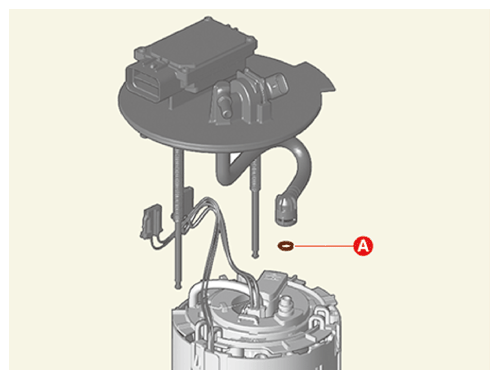

    NOTE: Be careful not to miss the O-ring (A) when assembling the plate cover assembly.
    G16423785Courtesy of KIA MOTORS AMERICA, INC.
