Component Inspection

  1. Disconnect the Heated Oxygen Sensor (HO2S) connector (A).

    Front Heated Oxygen Sensor

    G16423638Courtesy of KIA MOTORS AMERICA, INC.

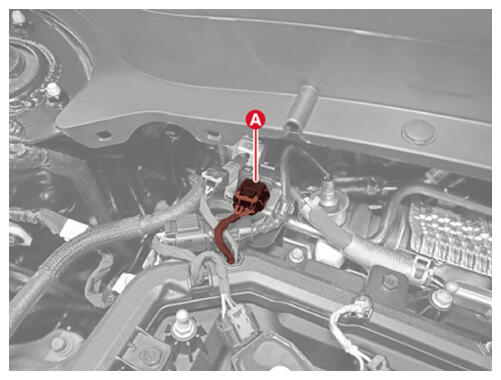

    Rear Heated Oxygen Sensor

    G16423639Courtesy of KIA MOTORS AMERICA, INC.
  2. Measure resistance between the HO2S terminals.

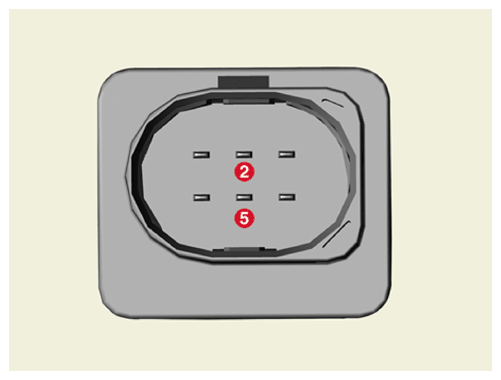

    Front Heated Oxygen Sensor

    G16423640Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    2 Heater (+)
    5 Heater (-)

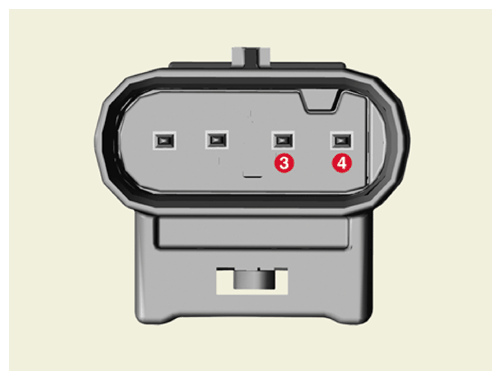

    Rear Heated Oxygen Sensor

    G16423641Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    3 Heater (+)
    4 Heater (-)
  3. Check that the resistance is within the specification.
    Item Specification
    Front heated oxygen sensor (Ω) 2.5 (Room temperature)
    Rear heated oxygen sensor (Ω) 3.0 (Room temperature)
