Connector And Terminal Function

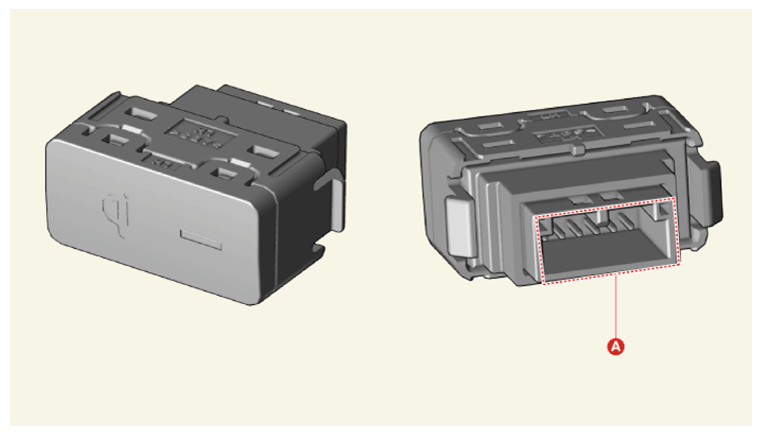

G16425854Courtesy of KIA MOTORS AMERICA, INC.
Connector A Terminal Function
G16425855Courtesy of KIA MOTORS AMERICA, INC.
 1 Ground
2 Wireless charging indicator (Green)
3 Wireless charging indicator (Amber)
4 -
5 Illumination (-)
6 Illumination (+)
