Front Door Outside Handle

Remove the front door outside handle.
(Refer to Body - "FRONT DOOR OUTSIDE HANDLE - REMOVAL & INSTALLATION ")

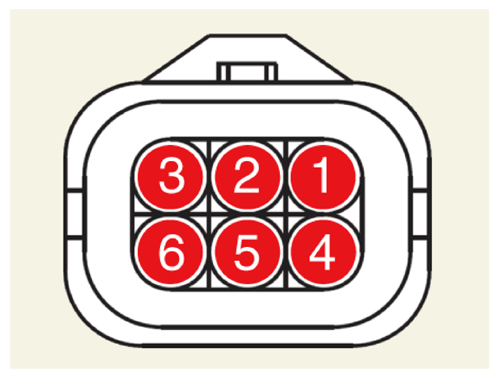

Disconnect the front door outside handle connector and then check for continuity between terminals No 1 and No 6.

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
Terminal	SMK	NFC
1	Battery (+)	Battery (+)
2	-	L-CAN (Low)
3	Driver's door lock/unlock switch	Driver's door lock switch
4	Driver's door antenna (ground)	Driver's door unlock switch
5	-	L-CAN (High)
6	Ground	Ground
