Removal And Installation: Installation
- Install in reverse order of removal.NOTE:

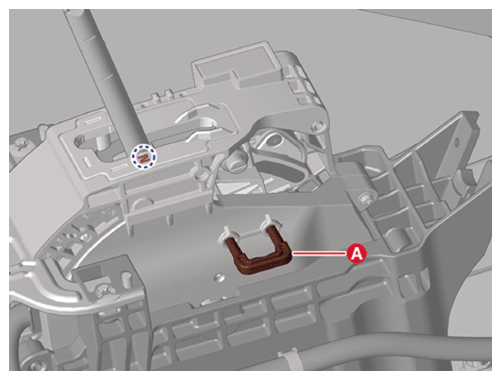

- Insert "N" range fixing pin (A) of shift lever after checking shift lever and the manual control lever are in the "N" range before installation.

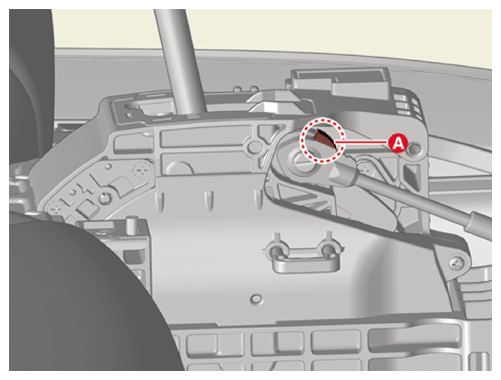

- Install the shift cable after checking the direction of tab (A) to prevent incorrect assembly.

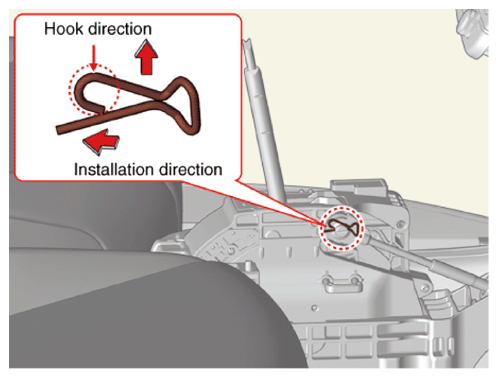

- Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

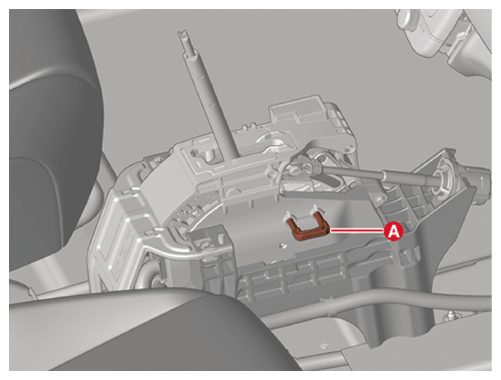

- Make sure to get rid of "N" range fixing pin (A) after installing the shift lever assembly.
- Insert "N" range fixing pin (A) of shift lever after checking shift lever and the manual control lever are in the "N" range before installation.
