VIS (Variable Induction System) Solenoid Valve #1

  1. Disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

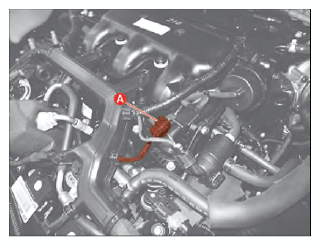

  3. Disconnect the VIS (Variable Induction System) solenoid valve connector (A).
    G15693362Courtesy of KIA MOTORS AMERICA, INC.

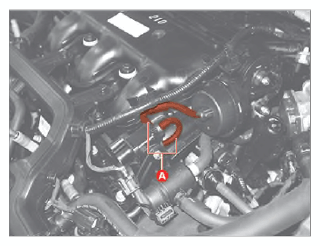

  4. Separate the hoses (A) from the valve.
    G15693363Courtesy of KIA MOTORS AMERICA, INC.

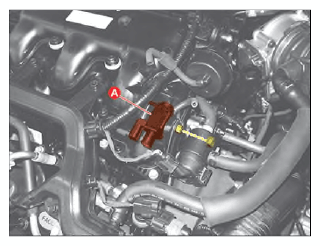

  5. Remove the VIS solenoid valve (A) after removing the nut.

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

G15693364Courtesy of KIA MOTORS AMERICA, INC.
