VIS (Variable Induction System) Solenoid Valve #2

Disconnect the battery negative (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

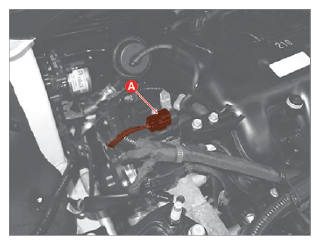

Disconnect the VIS (Variable Induction System) solenoid valve connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

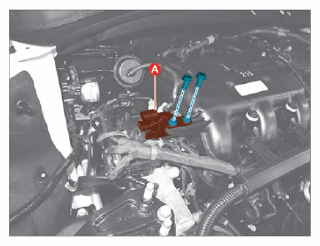

Separate the VIS solenoid valve (A) after removing the bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

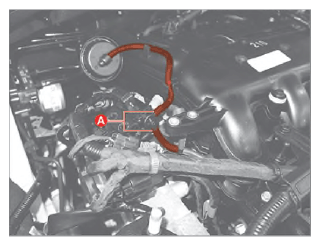

Separate the hoses (A) from the valve.

Courtesy of KIA MOTORS AMERICA, INC.
