Removal & Installation: Removal

  1. Remove the sub frame.

    (Refer to Suspension System - "SUB FRAME ")

  2. Remove the front drive shaft. (RH side)

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

  3. Remove the front muffler.

    (Refer to Engine Mechanical System - "MUFFLER ")

  4. Remove the propeller shaft.

    (Refer to Driveshaft and axle - "Propeller Shaft")  REMOVAL & INSTALLATION

  5. Remove the transfer assembly.

    Tightening torque:

    60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.5 lb.ft)

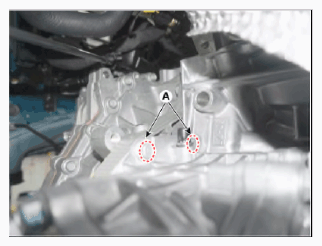

    1. Loosen the transfer upper mounting bolts (A).

      (Transfer side → Transaxle side)

      G15693815Courtesy of KIA MOTORS AMERICA, INC.

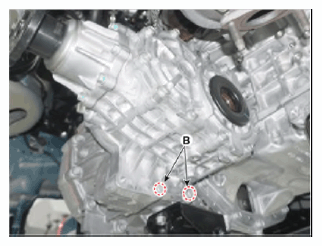

    2. Loosen the transfer lower mounting bolts (B).

      (Transfer side → Transaxle side)

      G15693816Courtesy of KIA MOTORS AMERICA, INC.

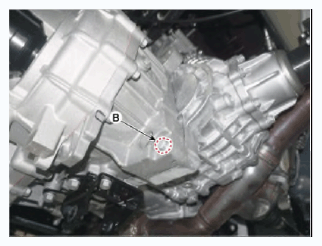

      (Transaxle side → Transfer side)

      G15693817Courtesy of KIA MOTORS AMERICA, INC.

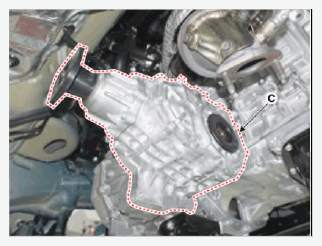

    3. Remove the transfer assembly (C).
G15693818Courtesy of KIA MOTORS AMERICA, INC.
