Telluride EX X-Line
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Ac Inverter System
>>
AC Inverter Unit
>>
Connector And Terminal Information
>>

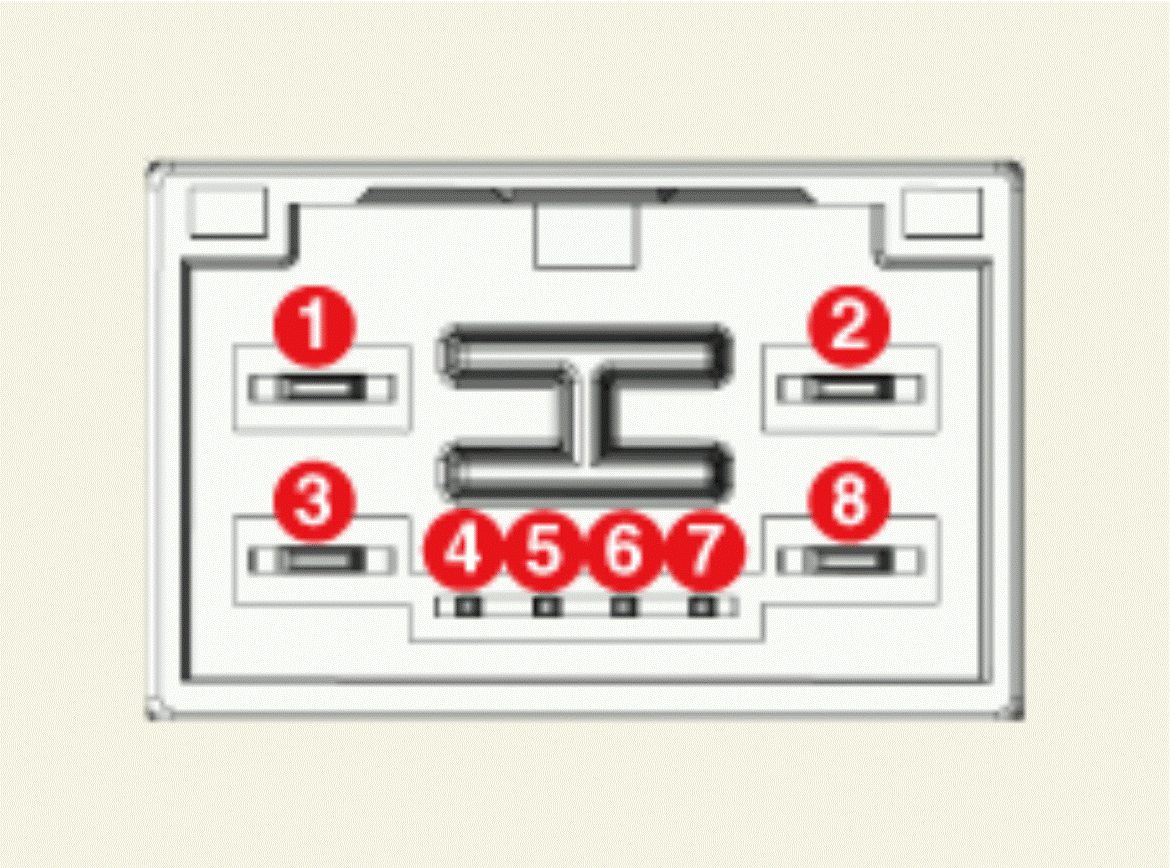

Connector And Terminal Function
Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
No
Function
1
Battery +
2
AC Power 1
3
Ground
4
IGN 2
5
AC Indicator
6
AC Switch in rear console
7
AC Switch in luggage trim
8
AC Power 2
Courtesy of KIA MOTORS AMERICA, INC.
