Home >> Kia >> 2024 >> Soul S >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System >> Drive Pulley Control Solenoid Valve (Primary_VFS) >> Components & Components Location >> Component

Components & Components Location: Component

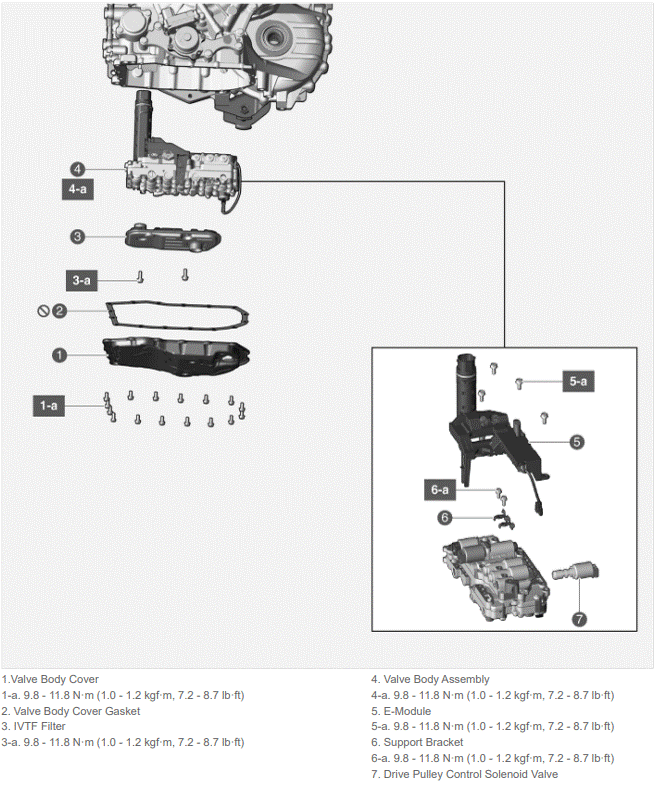

Fig 1: Drive Pulley Control Solenoid Valve Components Location With Torque Specifications

G15694782

Courtesy of KIA MOTORS AMERICA, INC.
