Repair Procedures: Replacement

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater and blower unit from the crash pad after loosening the mounting nuts.

    (Refer to Heater - "HEATER UNIT ")

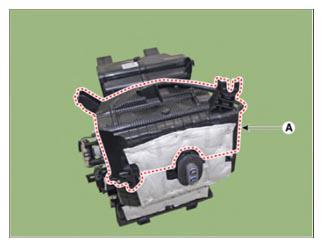

  3. Remove the evaporator core cover (A) after loosening the mounting screws.
    G15717267Courtesy of KIA MOTORS AMERICA, INC.

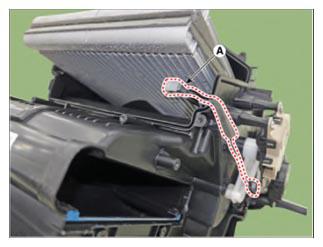

  4. Separate the evaporator temperature sensor (A) from the evaporator core.
    G15717268Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in reverse order of removal.
