Components And Components Location: Components

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

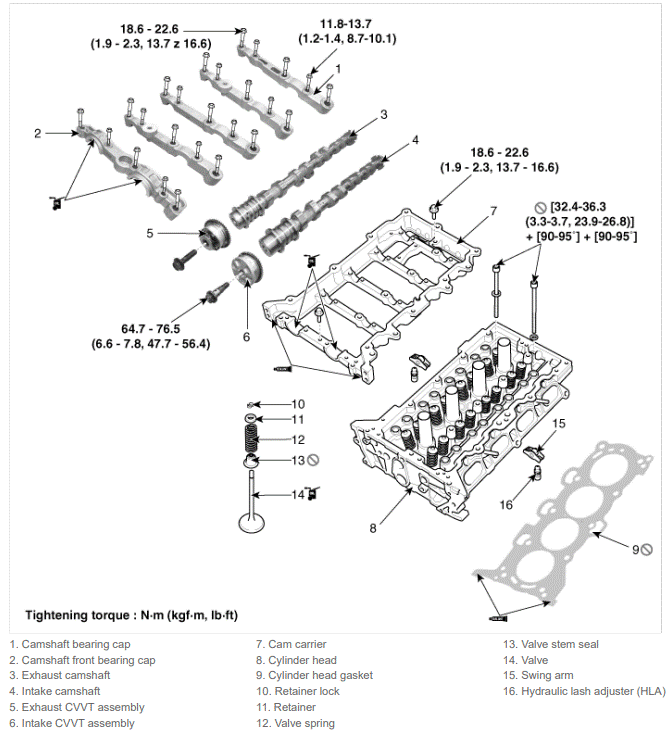

Fig 1: Cylinder Head Assembly Components Location With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.
