Repair Procedures: Removal

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

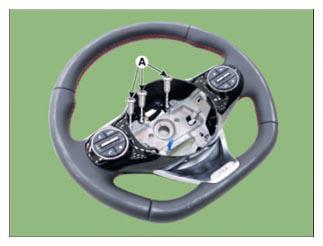

  3. Loosen the mounting screws (A).
    G15715914Courtesy of KIA MOTORS AMERICA, INC.

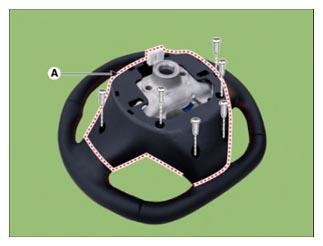

  4. Remove the steering wheel back cover (A) by loosening the mounting screws.
    G15715915Courtesy of KIA MOTORS AMERICA, INC.

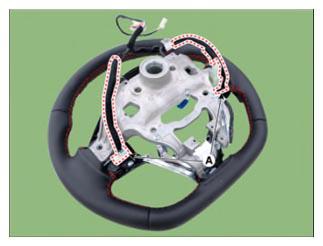

  5. Disconnect the steering wheel remote controller connectors (A).
    G15715916Courtesy of KIA MOTORS AMERICA, INC.

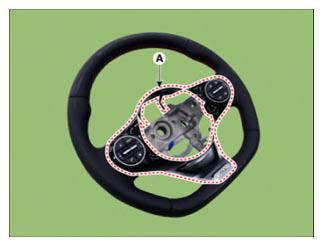

  6. Remove the steering wheel bezel assembly (A).
    G15715917Courtesy of KIA MOTORS AMERICA, INC.

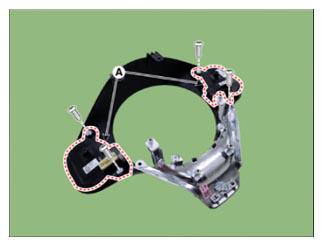

  7. Remove the steering wheel remote controllers (A) from bezel after loosening the screws.
G15715918Courtesy of KIA MOTORS AMERICA, INC.
