Repair Procedures: Removal

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

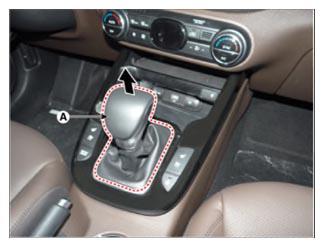

After separating the boots from the console upper cover, remove the knob (A) by pulling it in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

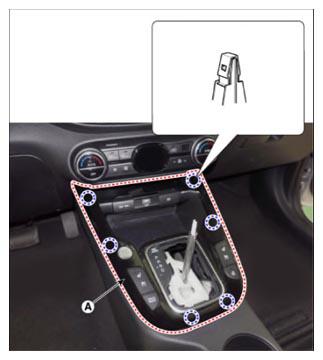

Remove the console upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

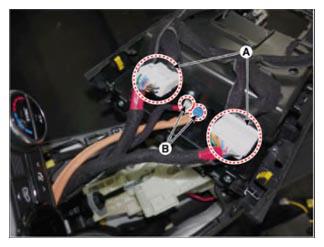

Disconnect the extension connector (A) and multimedia jack connectors (B).

Courtesy of KIA MOTORS AMERICA, INC.

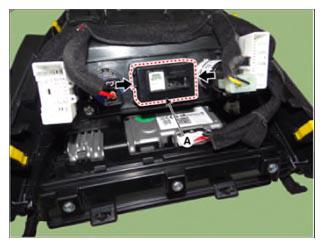

Remove the multimedia jack (A) by pressing the hooks.

Courtesy of KIA MOTORS AMERICA, INC.
