Turn Signal Lamp

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

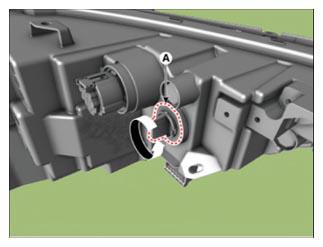

  1. Remove the turn signal lamp socket (A) by turning in the counterclockwise direction.
    G15716911Courtesy of KIA MOTORS AMERICA, INC.

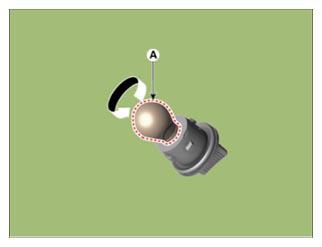

  2. Replace the turn signal lamp bulb (A) by turning in the counterclockwise direction.
    G15716912Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
