Low/High Beam

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly.

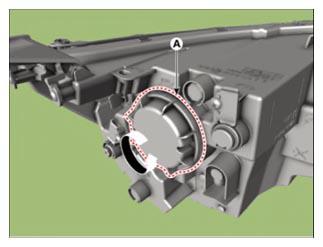

  2. Remove the dust cap (A) after turning in the counterclockwise direction.
    G15716907Courtesy of KIA MOTORS AMERICA, INC.

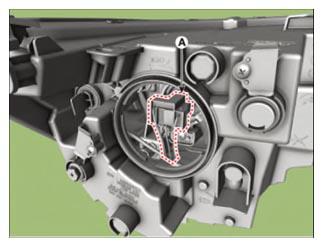

  3. Disconnect the low/high beam bulb connector (A).
    G15716908Courtesy of KIA MOTORS AMERICA, INC.

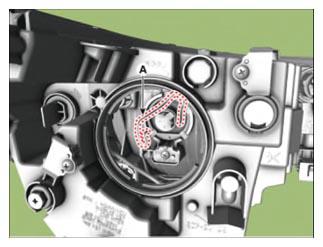

  4. Remove the fixing clip (A).
    G15716909Courtesy of KIA MOTORS AMERICA, INC.

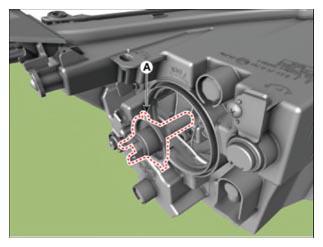

  5. Replace the low/high beam bulb (A).
    G15716910Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
