Removal And Installation

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel and tire.
(Refer to Tires/Wheels - "WHEEL ")

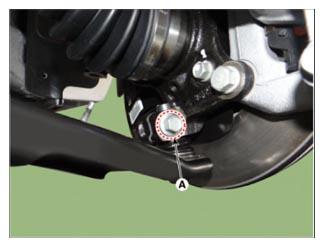

Remove the lower arm mounting bolt and nut (A).
Tightening torque:

58.8 - 70.6 N.m (6.0 - 7.2 kgf.m, 43.4 - 52.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Remove the front lower arm from the front axle.

NOTE: If the lower arm ball joint is stuck on the front axle, remove the front lower arm by using SST (0K545-A9100).

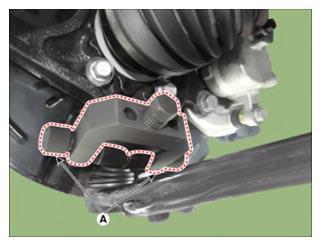

After removing bolts from the front knuckle, install and tighten the sub body bolt (A).

G15714784

Courtesy of KIA MOTORS AMERICA, INC.

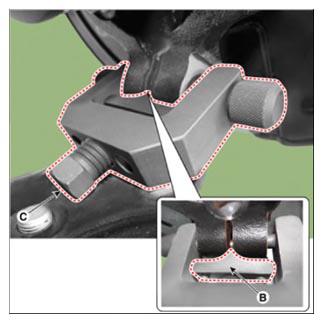

Insert the sub body (B) between the front knuckle and the sub body bolt.

Tighten the bolt (C) sub body to broaden the gap of the front knuckle.

G15714785

Courtesy of KIA MOTORS AMERICA, INC.

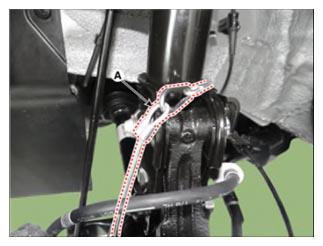

Install the safe wire (A).

G15714786

Courtesy of KIA MOTORS AMERICA, INC.

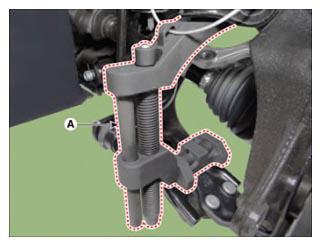

Install the main body (A) between the front strut and the lower arm.

G15714787

Courtesy of KIA MOTORS AMERICA, INC.

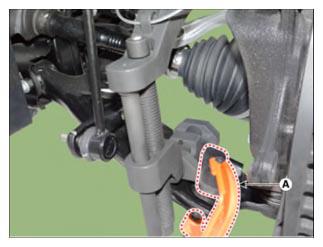

To avoid the main body coming off, install a fixing clamp (A) beside the main body.

G15714788

Courtesy of KIA MOTORS AMERICA, INC.

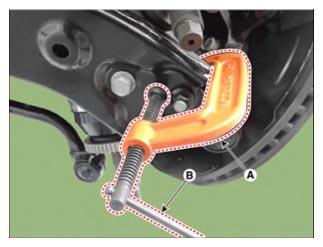

After installing the body (A) rotate the handle (B) clockwise until the clamp is fixed on the lower arm.

G15714789

Courtesy of KIA MOTORS AMERICA, INC.

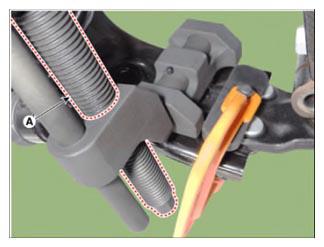

Tighten the main body bolt (A) slowly and remove the lower arm from the front knuckle.

G15714790

Courtesy of KIA MOTORS AMERICA, INC.

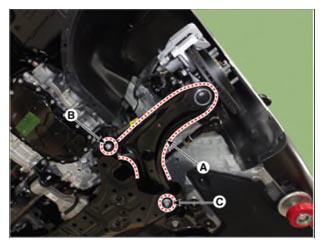

Remove the lower arm (A) from the sub frame.
Tightening torque:

B: 117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb.ft)

C: 157.0 - 176.6 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the wheel alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
