Repair Procedures: Removal

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

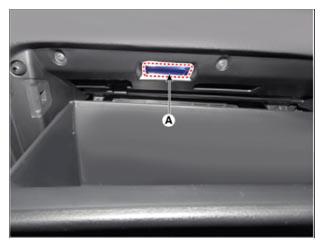

  2. Remove the glove box lamp (A) using a flat-tip screwdriver or remover.
    G15716994Courtesy of KIA MOTORS AMERICA, INC.

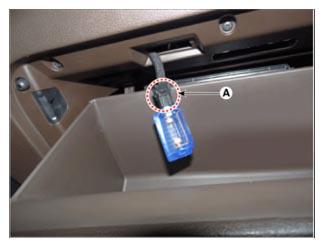

  3. Disconnect the connector (A) from the glove box lamp.
G15716995Courtesy of KIA MOTORS AMERICA, INC.
