Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Backup & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig. 1 to 9

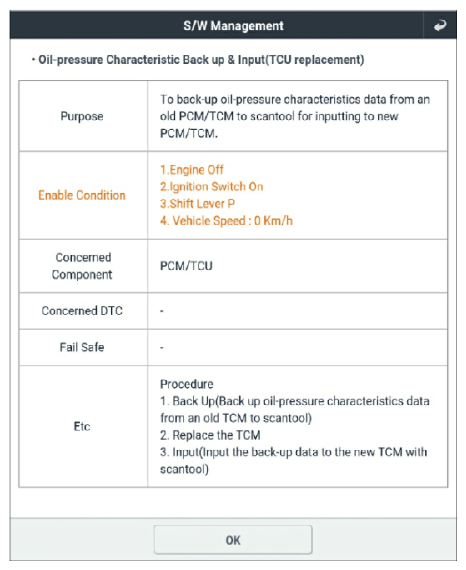

G15733111Courtesy of KIA MOTORS AMERICA, INC.

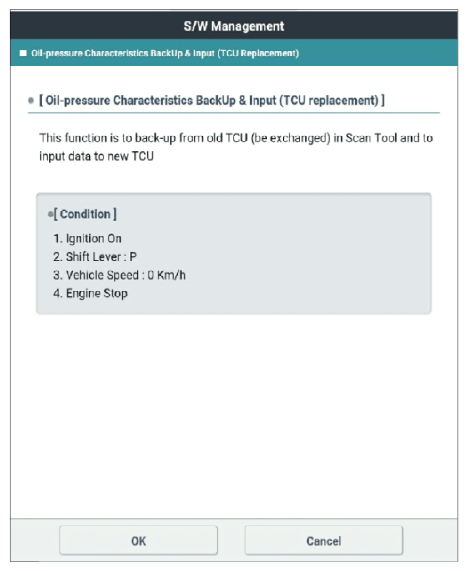

G15733112Courtesy of KIA MOTORS AMERICA, INC.

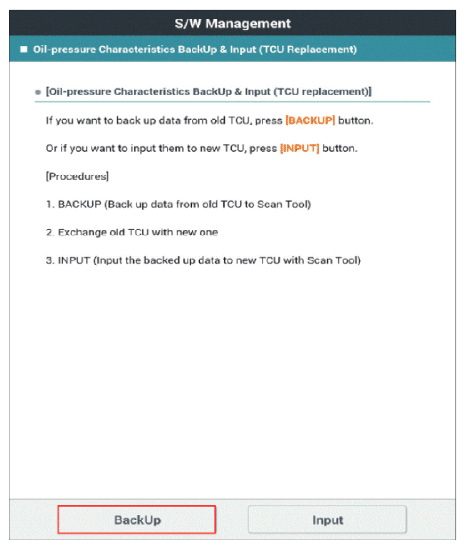

G15733113Courtesy of KIA MOTORS AMERICA, INC.

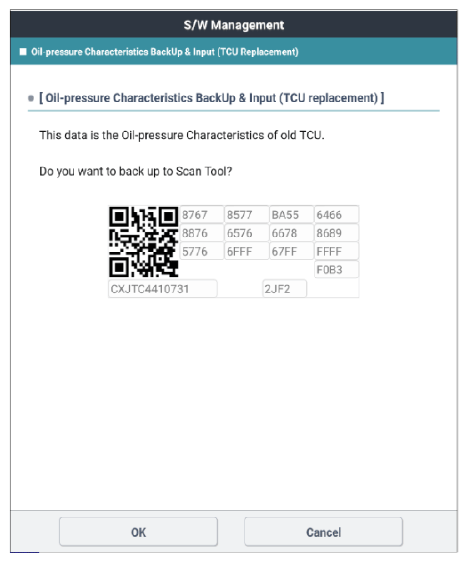

G15733114Courtesy of KIA MOTORS AMERICA, INC.

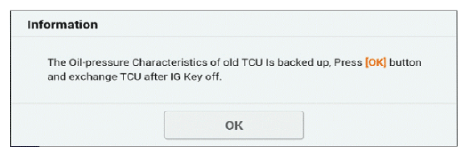

G15733115Courtesy of KIA MOTORS AMERICA, INC.

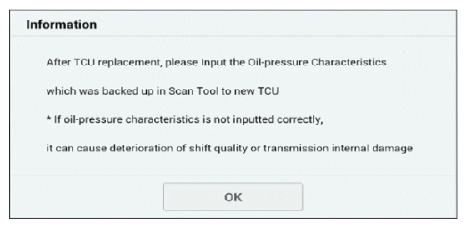

G15733116Courtesy of KIA MOTORS AMERICA, INC.

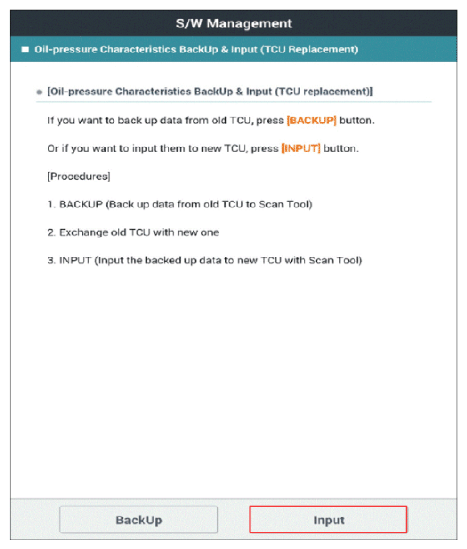

G15733117Courtesy of KIA MOTORS AMERICA, INC.

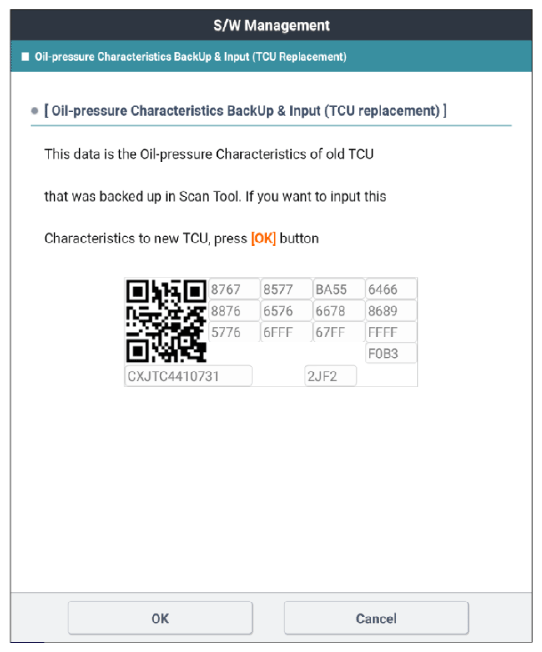

G15733118Courtesy of KIA MOTORS AMERICA, INC.
G15733119Courtesy of KIA MOTORS AMERICA, INC.
