Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Backup & Input (TCU Replacement)" and Go to "VERIFICATION OF REPAIR " procedure.
 Fig. 1 to 9

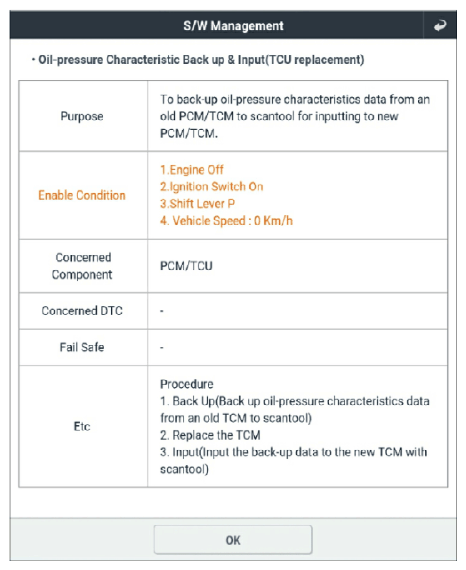

G15733100Courtesy of KIA MOTORS AMERICA, INC.

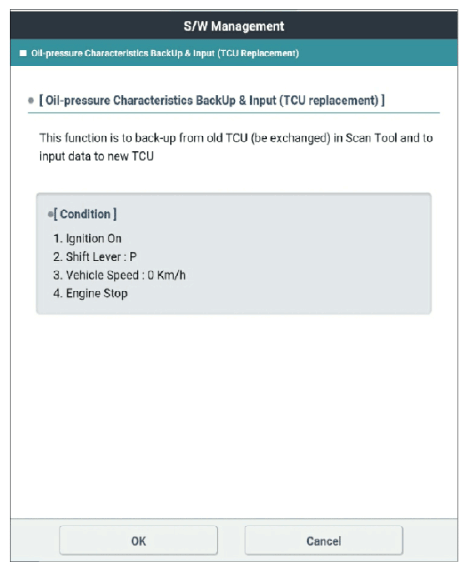

G15733101Courtesy of KIA MOTORS AMERICA, INC.

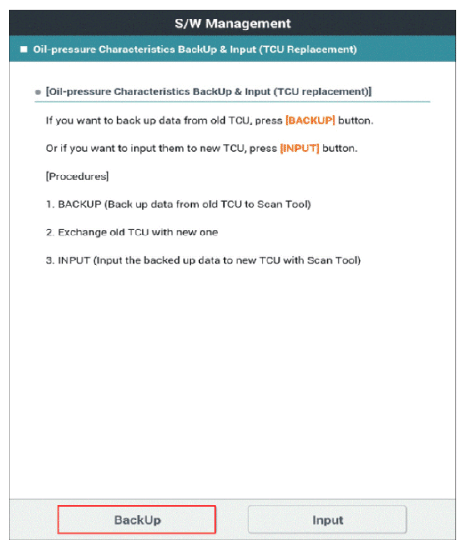

G15733102Courtesy of KIA MOTORS AMERICA, INC.

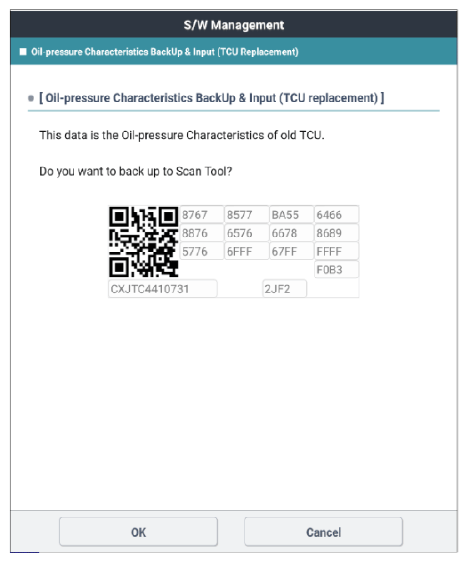

G15733103Courtesy of KIA MOTORS AMERICA, INC.

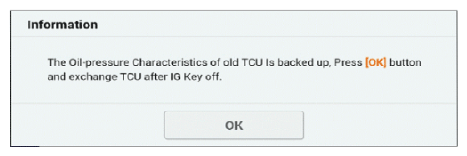

G15733104Courtesy of KIA MOTORS AMERICA, INC.

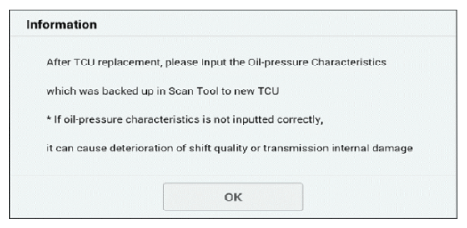

G15733105Courtesy of KIA MOTORS AMERICA, INC.

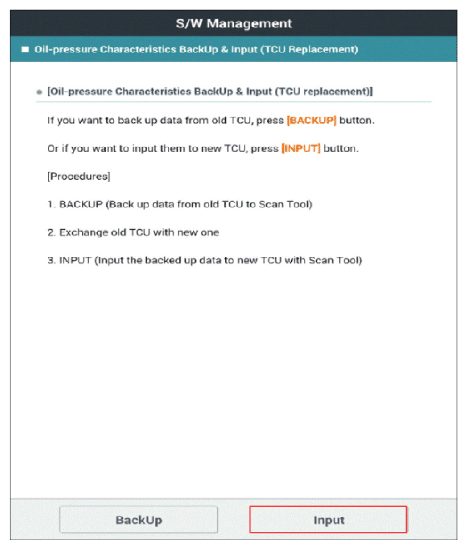

G15733106Courtesy of KIA MOTORS AMERICA, INC.

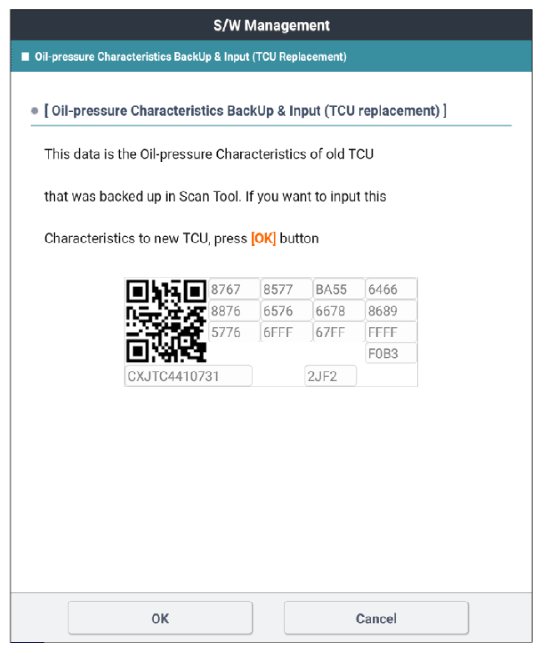

G15733107Courtesy of KIA MOTORS AMERICA, INC.
G15733108Courtesy of KIA MOTORS AMERICA, INC.
