Home >> Kia >> 2024 >> Soul EX >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Auto Lighting Control System >> Auto Light Sensor >> Repair Procedures >> Removal

Repair Procedures: Removal

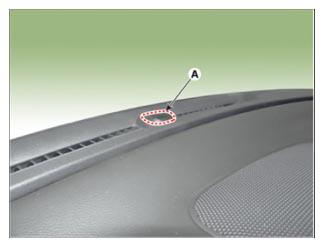

  1. Remove the auto light sensor (A) from the main crash pad.
    G15715747Courtesy of KIA MOTORS AMERICA, INC.

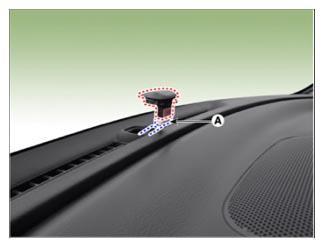

  2. Disconnect the connector (A) from the auto light sensor.
G15715748Courtesy of KIA MOTORS AMERICA, INC.
