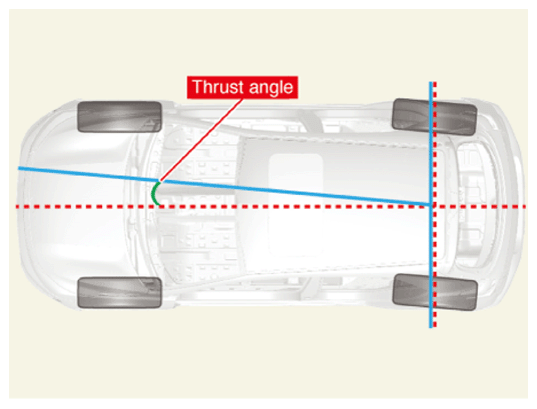

Thrust Angle
The angle at which the Thrust line and the centerline of the vehicle are formed.
* Thrust line: A line that is perpendicular to the center line of the vehicle and the center line of the rear axle.
- Thrust conditions occur when the rear wheel individual toe is not the same.
Information
Poor thrust angles can increase tire wear, reduce steering direction, and cause dog tracking.

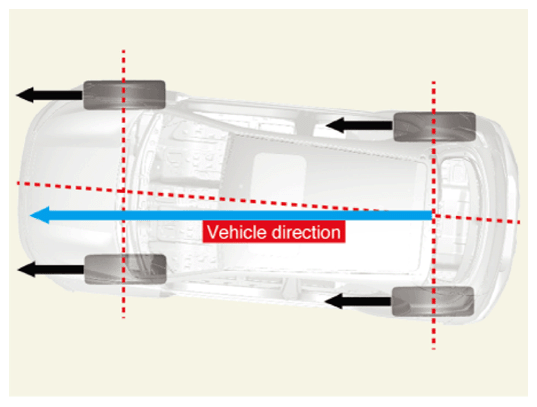

* Dog tracking: The driving condition when the thrust line is not parallel to the center line of the vehicle
