Repair Procedures: Disassembly

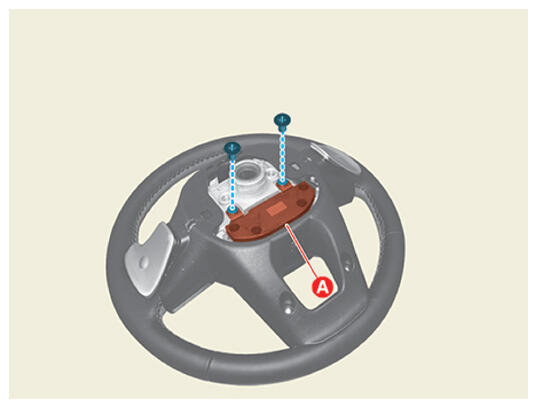

  1. Remove the steering wheel dynamic damper (A) after removing the screws.
    G16512017Courtesy of KIA MOTORS AMERICA, INC.

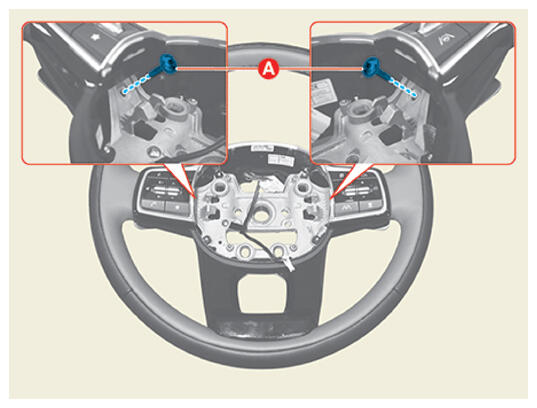

  2. Remove the paddle shift switch mounting screws (A).
    G16512018Courtesy of KIA MOTORS AMERICA, INC.

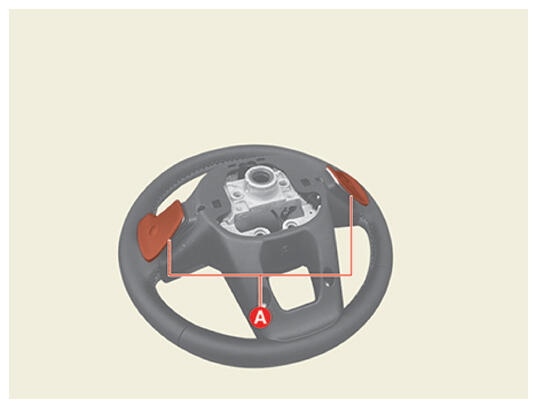

  3. Separate the paddle shifter switch (A) with a suitable tool.
    G16512019Courtesy of KIA MOTORS AMERICA, INC.

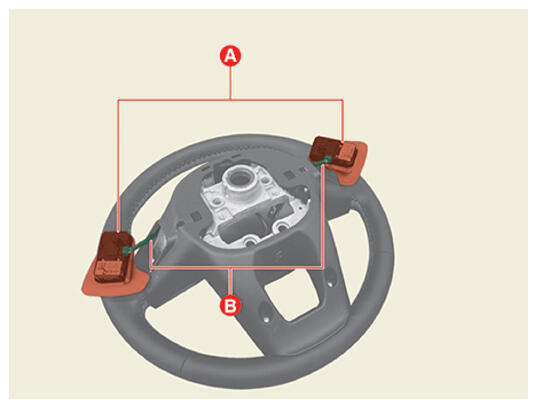

  4. Disconnect the paddle shifter switch connector (B) then remove the paddle shifter switch (A).
    G16512020Courtesy of KIA MOTORS AMERICA, INC.

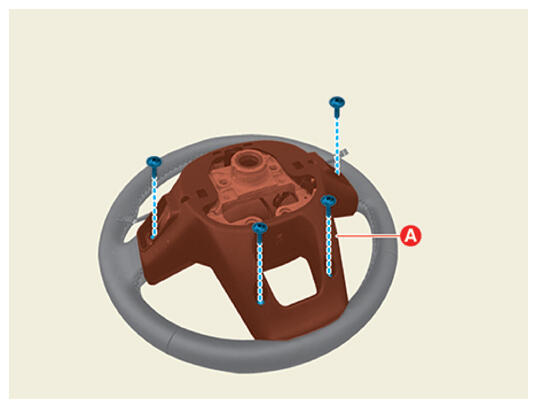

  5. Remove the steering wheel lower cover (A) after removing the screws.
    G16512021Courtesy of KIA MOTORS AMERICA, INC.

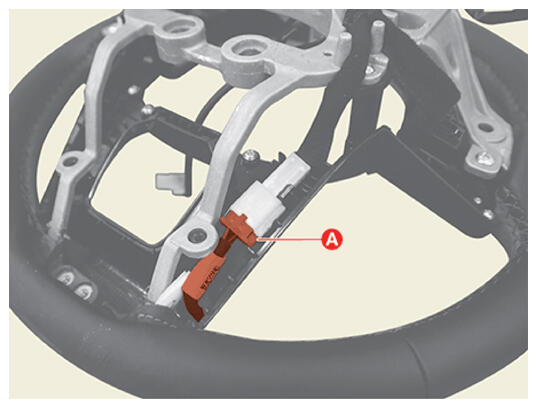

  6. Disconnect the heated steering wheel connector (A).
    G16512022Courtesy of KIA MOTORS AMERICA, INC.

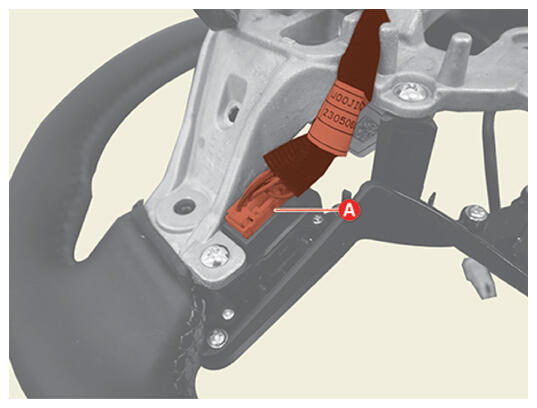

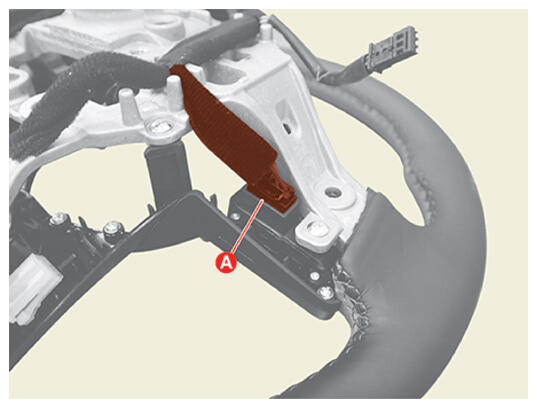

  7. Disconnect the remote control switch connectors (A).

    [LH]

    G16512023Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G16512024Courtesy of KIA MOTORS AMERICA, INC.

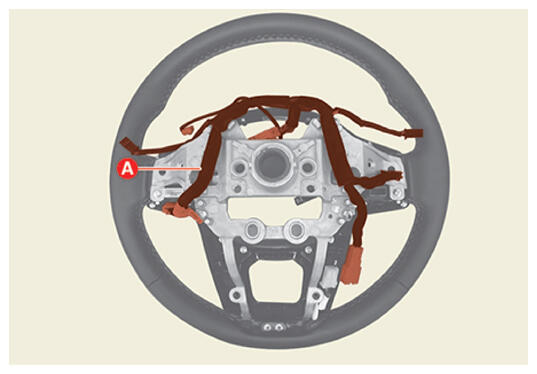

  8. Remove the steering wheel extension wiring (A).
    G16512025Courtesy of KIA MOTORS AMERICA, INC.

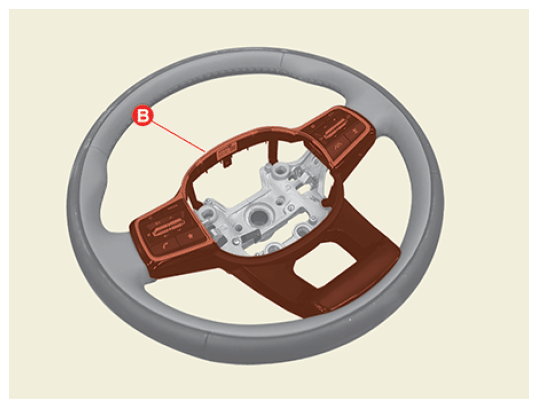

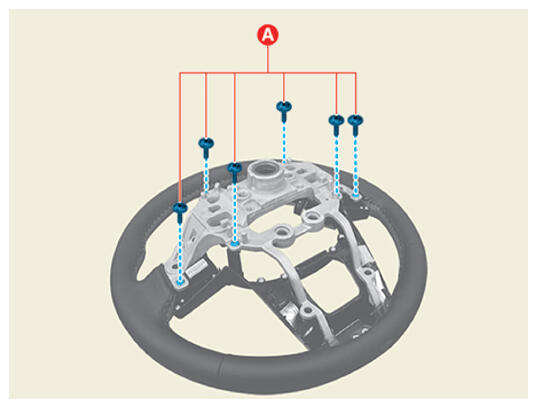

  9. Remove the steering wheel bezel (B) after removing the screws (A).
    G16512026Courtesy of KIA MOTORS AMERICA, INC.
    G16512027Courtesy of KIA MOTORS AMERICA, INC.

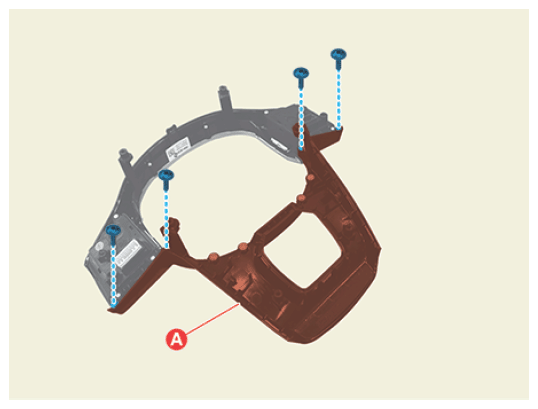

  10. Remove the steering wheel lower bezel (A) after removing the screws.
    G16512028Courtesy of KIA MOTORS AMERICA, INC.

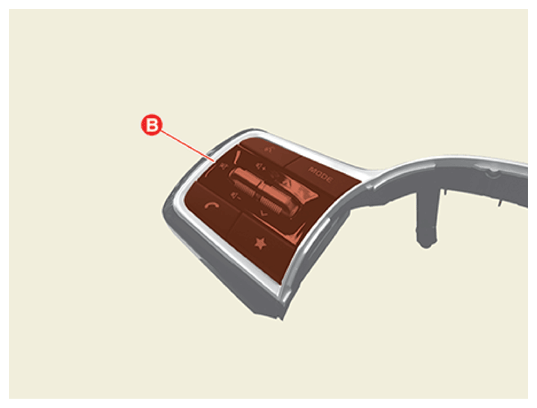

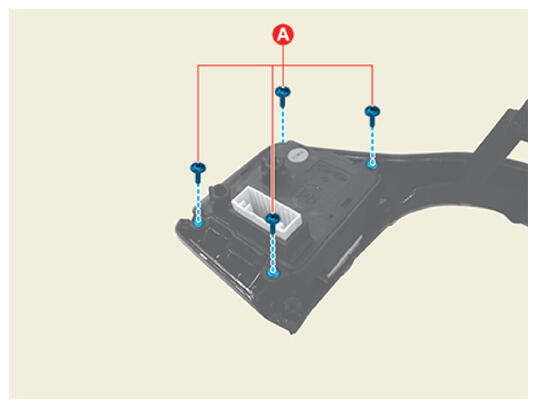

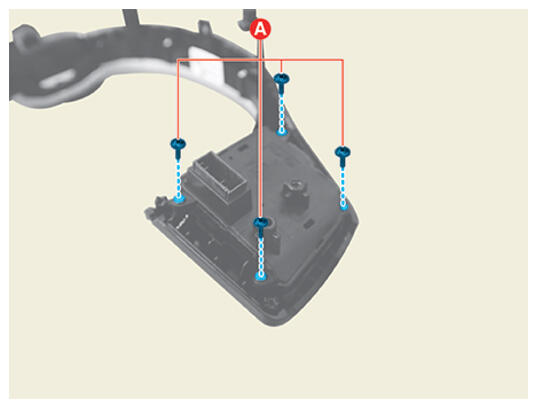

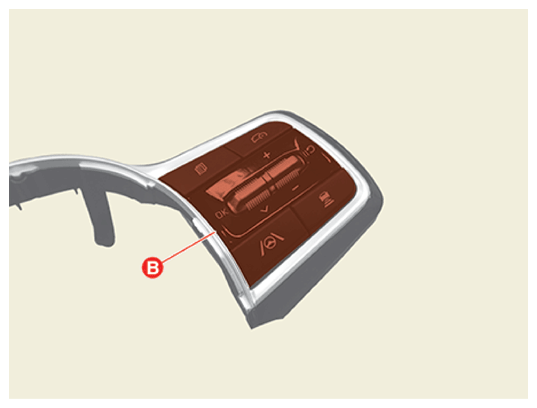

  11. Remove the SWRC switches (B) after removing the screws (A).

    [LH]

    G16512029Courtesy of KIA MOTORS AMERICA, INC.
    G16512030Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

G16512031Courtesy of KIA MOTORS AMERICA, INC.
G16512032Courtesy of KIA MOTORS AMERICA, INC.
