Power Window Sub Switch

  1. Remove the passenger's side front door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

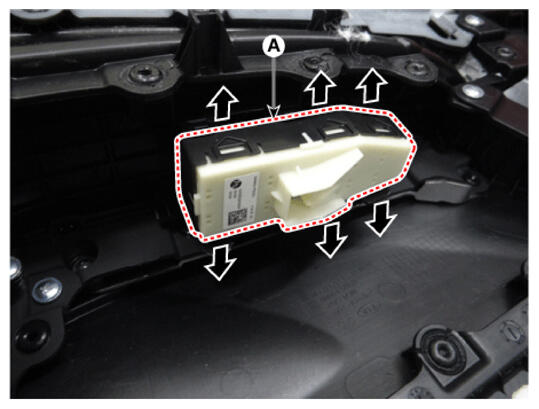

  2. Remove the power window sub switch (A) after pulling the hooks in the direction of arrow.
G16513367Courtesy of KIA MOTORS AMERICA, INC.
