Front Power Window Motor

  1. Remove the front door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

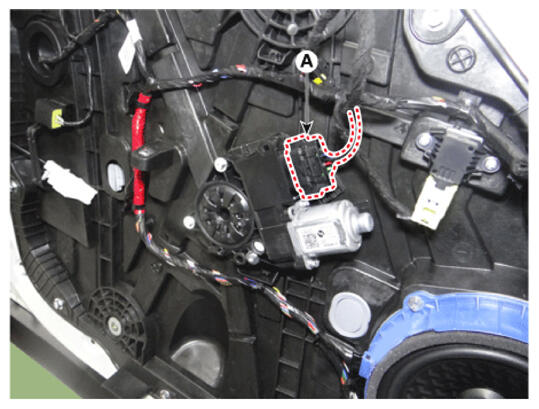

  2. Disconnect the front power window motor connector (A).
    G16513362Courtesy of KIA MOTORS AMERICA, INC.

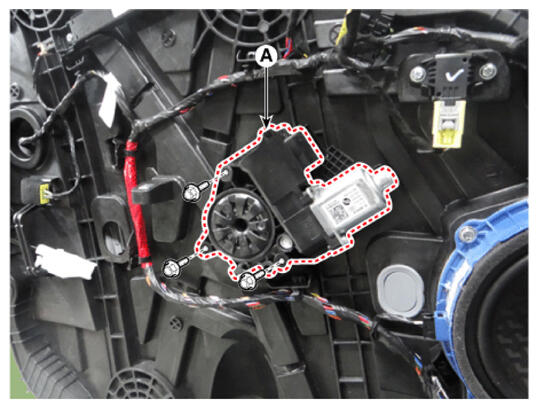

  3. Remove the front power window motor (A) after removing the bolts.
G16513363Courtesy of KIA MOTORS AMERICA, INC.
