Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.
- Remove the steering column shroud panel.
(Refer to Body - " STEERING COLUMN SHROUD PANEL ")

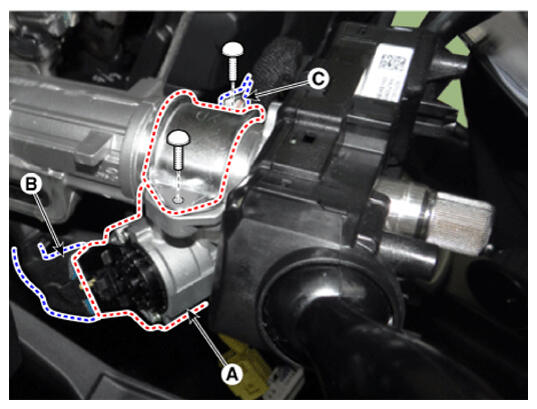

- Remove the ignition switch (A) after removing the bolts and disconnecting the connectors (B, C).
Tightening torque:
6.9 - 12.7 N.m (0.7 - 1.3 kgf.m, 5.1 - 9.4 lb.ft)
