Repair Procedures: Removal

  1. Remove the crash pad center panel.

    (Refer to Body - " CRASH PAD CENTER PANEL  ")

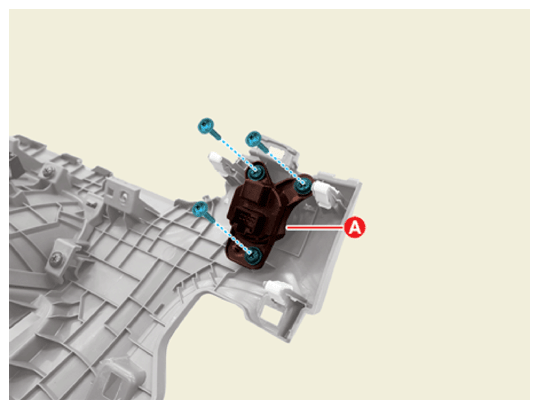

  2. Remove the start/stop button (A) after removing the screws.
    G16513113Courtesy of KIA MOTORS AMERICA, INC.
