Throttle Position Sensor (TPS)

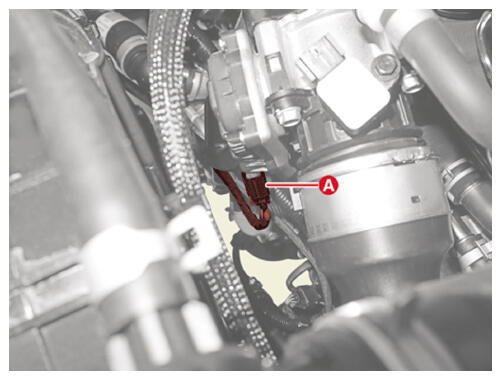

Disconnect the Electronic Throttle Control (ETC) Module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Connect the KDS.
Start the engine and measure the output voltage of TPS 1 and 2 at E.C.P. and W.O.T.

Courtesy of KIA MOTORS AMERICA, INC.

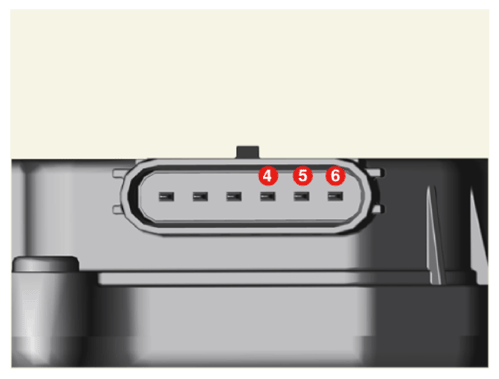

Terminal	Function
4	Throttle Position Sensor (TPS) 2
5	Sensor ground
6	Throttle Position Sensor (TPS) 1

Item

Specification

Sensor Output Voltage (V)

Throttle Angle (°)

TPS 1

TPS 2

0.5

4.5

0.96

4.05

1.41

3.59

1.87

3.14

2.32

2.68

2.78

2.23

3.23

1.77

3.69

1.32

4.14

0.86

4.60

0.41

91.2

4.65

0.35

⁽¹⁾ (0°)

0.5

4.5

⁽²⁾ (82°)

4.23

0.77

⁽¹⁾	Electrically Close Position

⁽²⁾	Wide Open Throttle
