Power Window Rear Switch

  1. Remove the rear door trim.

    (Refer to Body - " REAR DOOR TRIM  ")

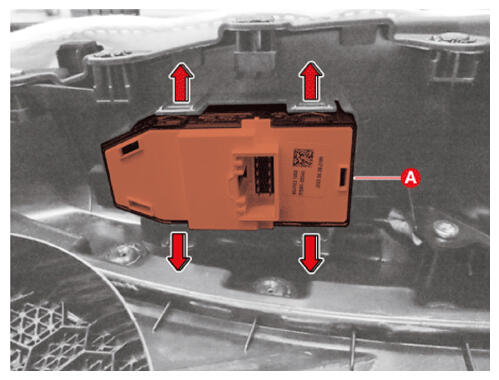

  2. Remove the power window rear switch (A) after pulling the hooks in the direction of arrow.
    G16426145Courtesy of KIA MOTORS AMERICA, INC.
