Tailgate Lock Module

Remove the tailgate lid trim.
(Refer to Body - " TAILGATE LID TRIM ")

Disconnect the tailgate latch connector.

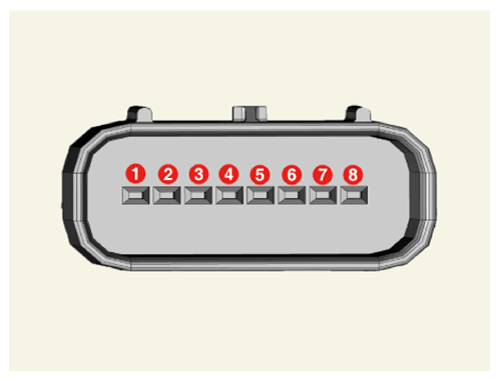

[Power Tailgate]

G16426117

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
1	Motor (-)
2	Motor (+)
3	Switch (REF)
4	COM
5	Switch (AJAR)
6	Switch (HOME)
7	COM
8	Switch (PAWL)

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.

Lock

Terminal	Function
Terminal	Unlatching	Unlatching → Half Latching	Half Latching→ Full Latching	Full Latching → Return	Return Position
2	X	-	-	+	X
1	X	+	+	-	X
7 - 8	ON	ON → OFF	OFF	OFF	OFF
6 - 7	ON	ON	ON	ON → OFF	OFF
4 - 5	ON	ON	ON → OFF	OFF	OFF
3 - 4	ON	ON	ON → OFF	OFF	OFF

Open

Terminal	Function
Terminal	Unlatching	Full Latching → Unlatching	Unlatching → Return	Return Position
2	X	+	-	X
1	X	-	+	X
7 - 8	OFF	OFF → ON	ON	ON
6 - 7	OFF	OFF → ON	ON → OFF	OFF → ON
4 - 5	OFF	OFF → ON	ON	ON
3 - 4	OFF	OFF → ON	ON	ON

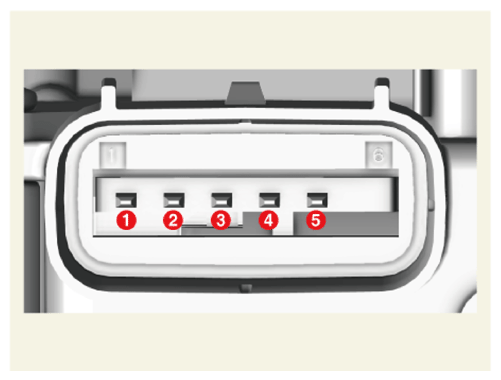

[Non-Power Tailgate]

G16426118

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
Terminal	Full Lock	Half Lock	Full Open
1	+	+	X
3	-	-	X
2 - 4	OFF	OFF	ON
5 - 4	OFF	ON	ON
