Power Window Rear Switch

  1. Remove the rear door trim.

    (Refer to Body -  "REAR DOOR TRIM ")

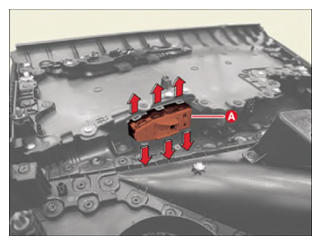

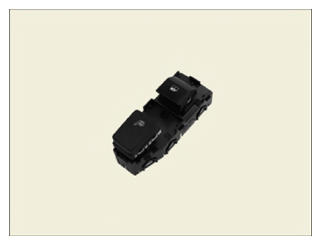

  2. Remove the power window rear switch (A) after pushing the hooks in the direction of arrow.
G15790608Courtesy of KIA MOTORS AMERICA, INC.
G15790609Courtesy of KIA MOTORS AMERICA, INC.
