Test For Changing Position Of Each Ignition Coil

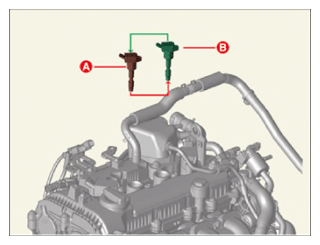

  1. Change the misfired ignition coil (A) and normal ignition coil (B).

    (Refer to Ignition Coil -  "REMOVAL AND INSTALLATION ")

    CAUTION: Do not move with spark plug at the same time (move the ignition coil only)
    G15787436Courtesy of KIA MOTORS AMERICA, INC.

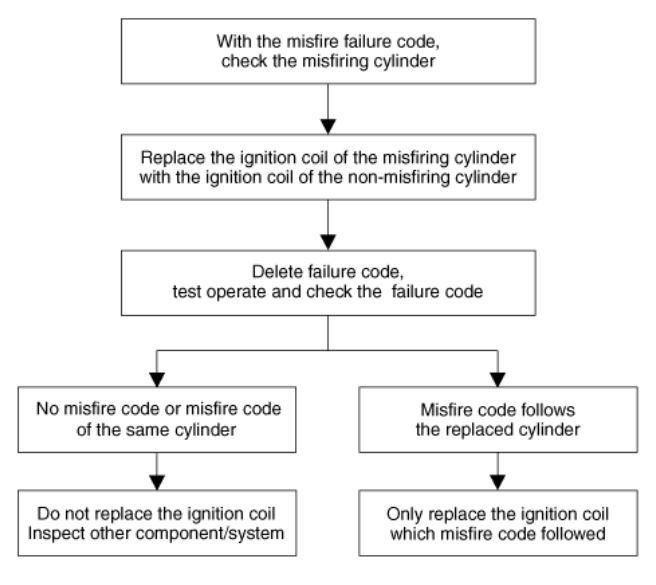

  2. Perform the driving test after deleting the DTC code.
    G15787437Courtesy of KIA MOTORS AMERICA, INC.
