Description & Operation: Components: Caster

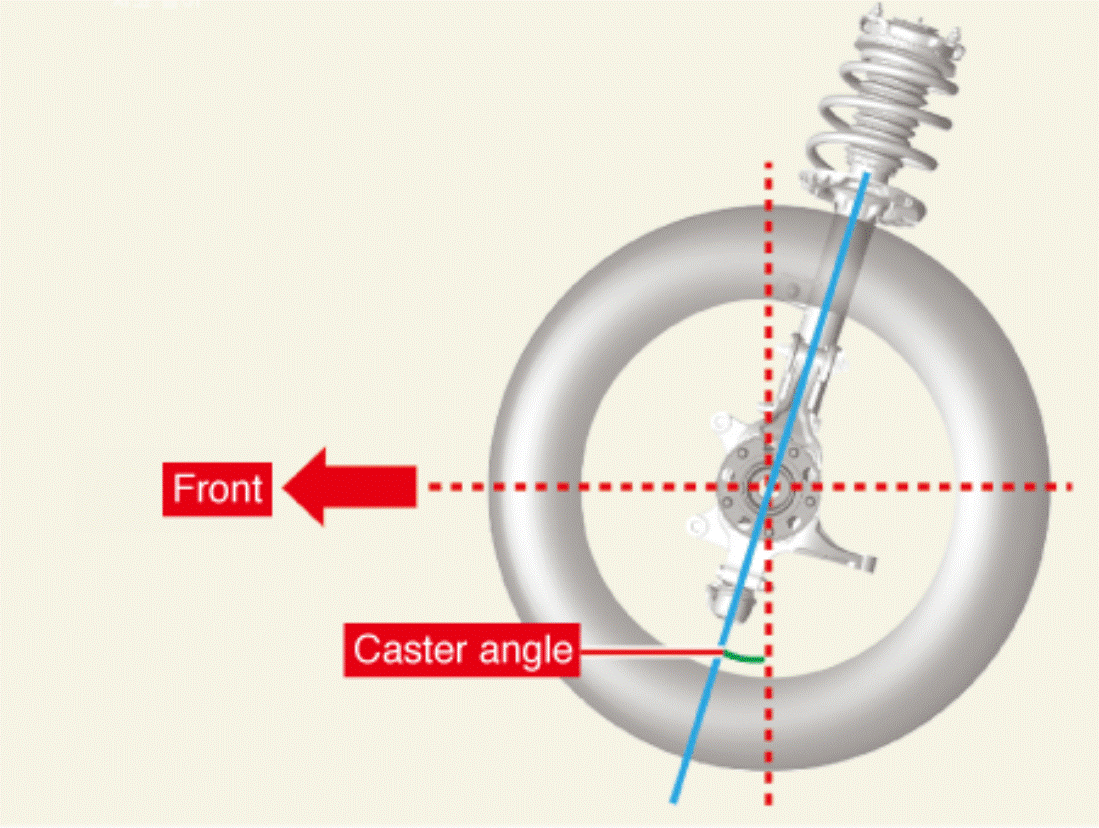

Caster refers to the angle at which the steering shaft tilts forward and backward relative to the vertical line initiated from the center of the wheel floor when the vehicle is viewed from the side.

G15771606Courtesy of KIA MOTORS AMERICA, INC.
