Alignment (HEV): Adjustment: Front: Caster
The caster cannot be adjusted. If the measured caster exceeds the standard limit, repair or replace the relevant parts and inspect the wheel alignment again.

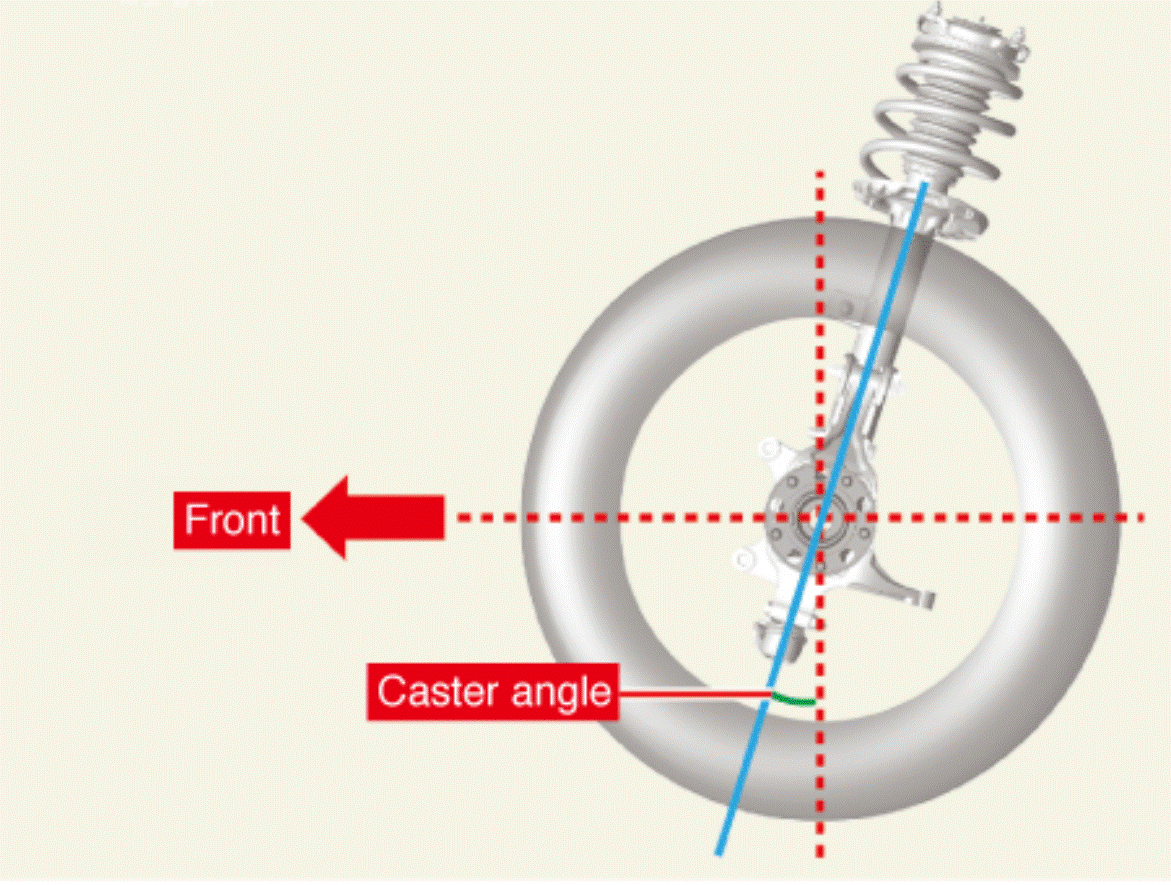

Caster angle:
4.40° ± 0.5°
Information
- Before measuring the front wheel alignment, wear, loose and damaged parts of the front suspension assembly should be replaced.
- Camber and caster are assembled at the specified value during production and need not be adjusted.
- If the camber and caster are not within the specified limits, replace the bent or damaged parts.
- The difference between the left and right wheels of Camber and Caster shall be within 0° ± 0.5°.
