Repair Procedures: Replacement

NOTE:

After a collision, the seat belt system should be inspected to ensure it is operating normally. Replace any belts that are not functioning appropriately.
Be careful not to damage the retractor when removing or installing the seat belt.

Remove the rear seat assembly.
(Refer to " Replacement ")
Remove the rear package tray trim.
(Refer to " Replacement ")

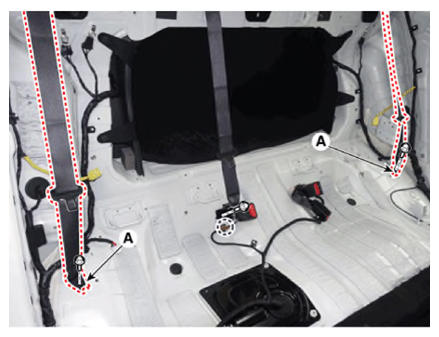

Loosen the mounting bolts and remove the rear seat belt lower anchor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolt and remove the rear seat belt retractor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

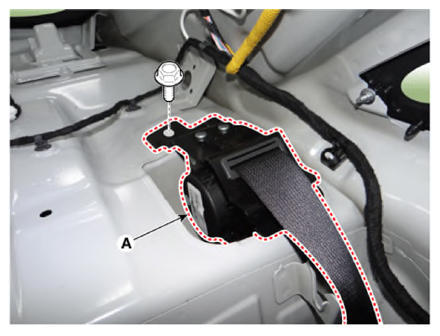

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

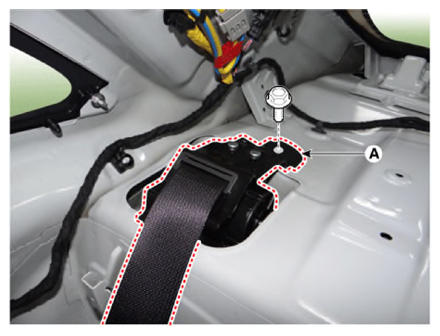

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
