Circuit Inspection

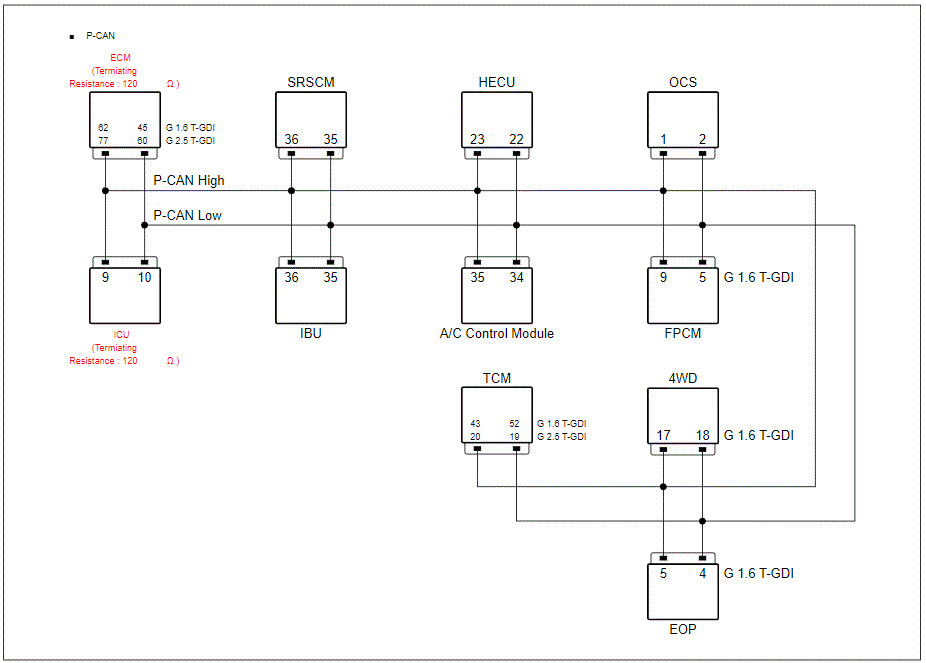

Courtesy of KIA MOTORS AMERICA, INC.

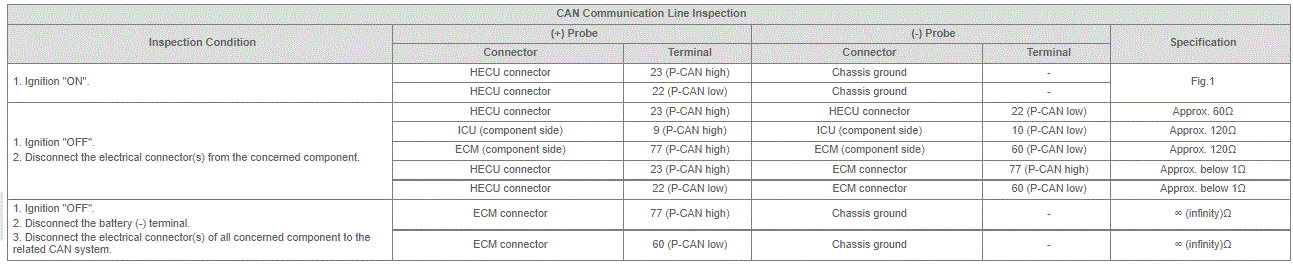

Courtesy of KIA MOTORS AMERICA, INC.

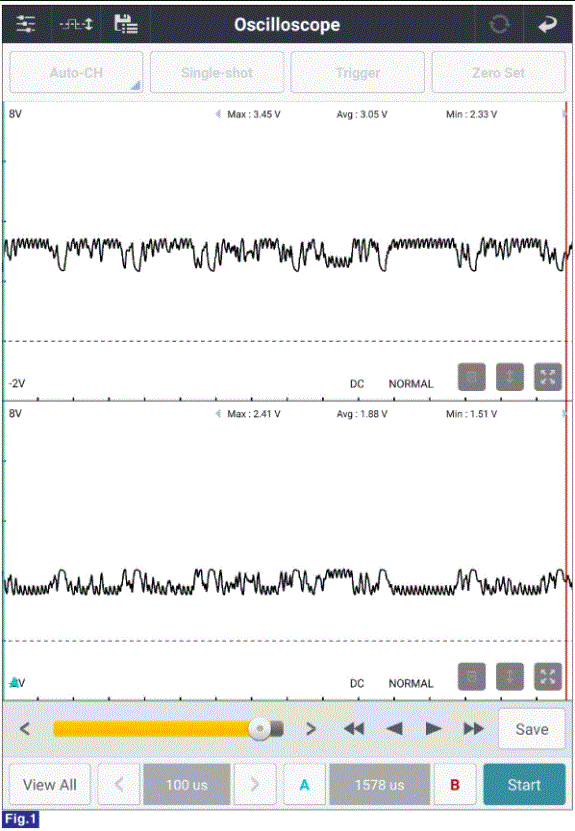

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Go to "Module Circuit Inspection" procedure below.

No Good

• Repair open or short in circuit and then go to "Verification Of Repair " procedure.

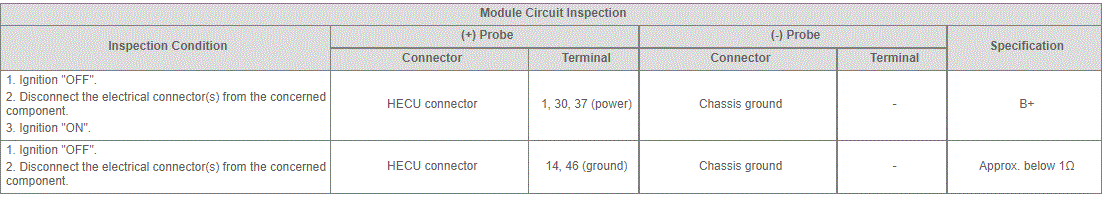

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Go to "Verification Of Repair " procedure.
• Repair as necessary and then go to "Verification Of Repair " procedure.

No Good

• Repair open or short in circuit and then go to "Verification Of Repair " procedure.
