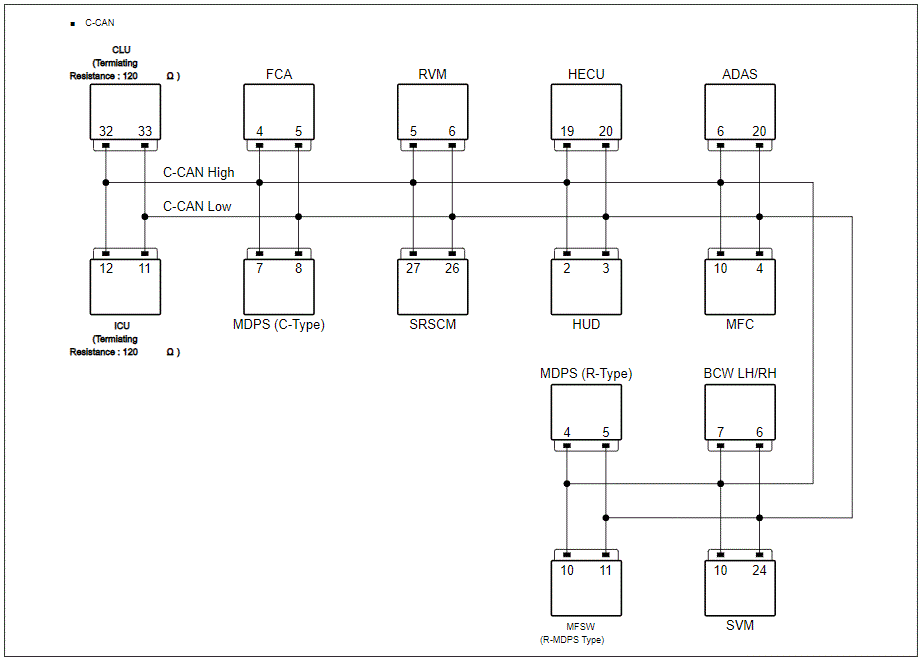

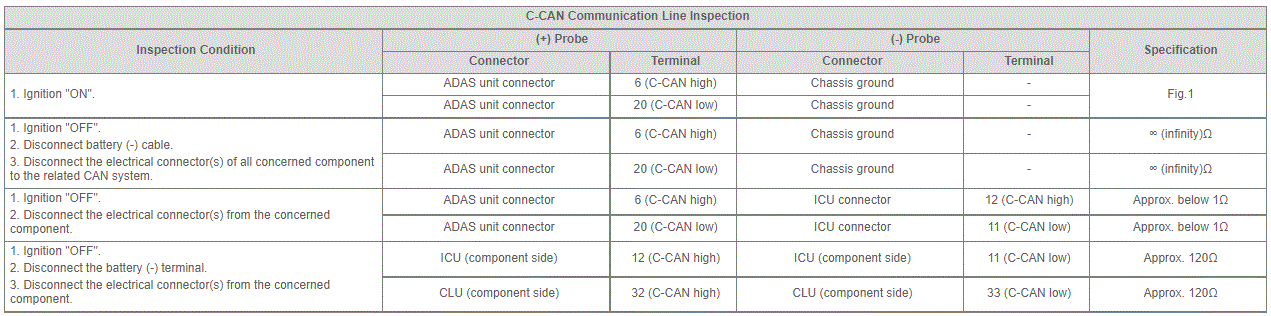

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

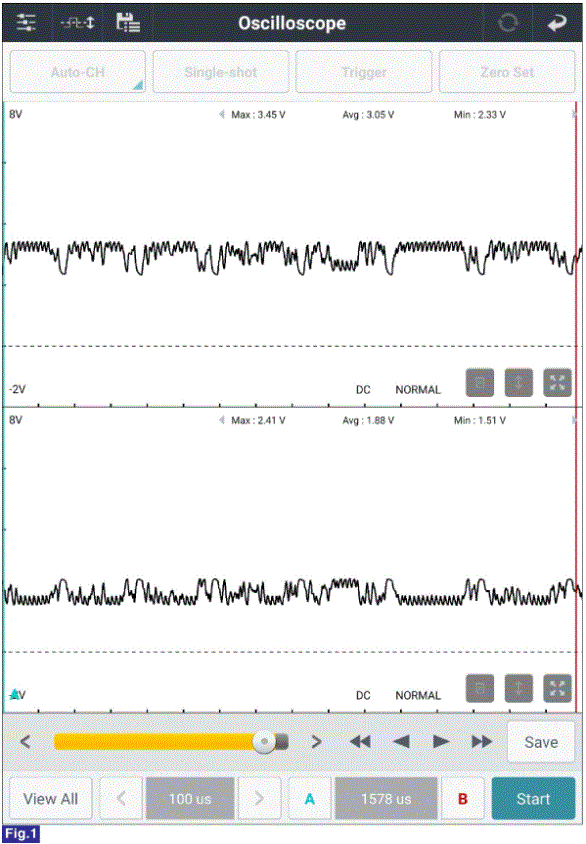

Good

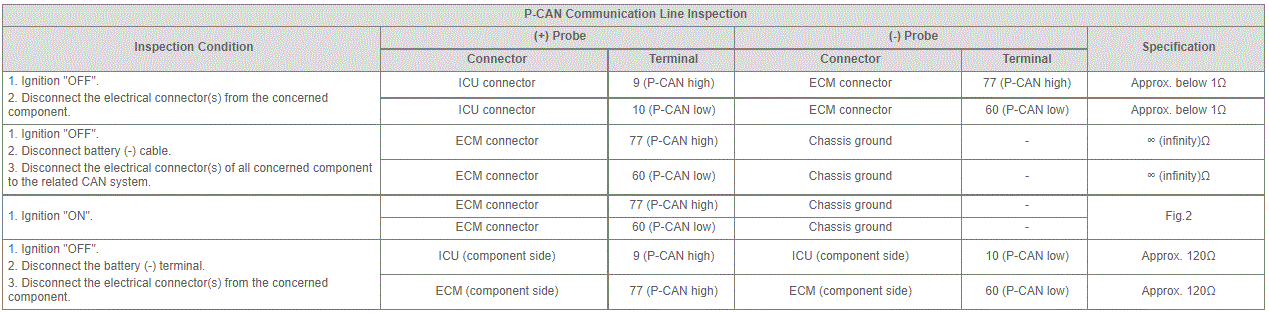

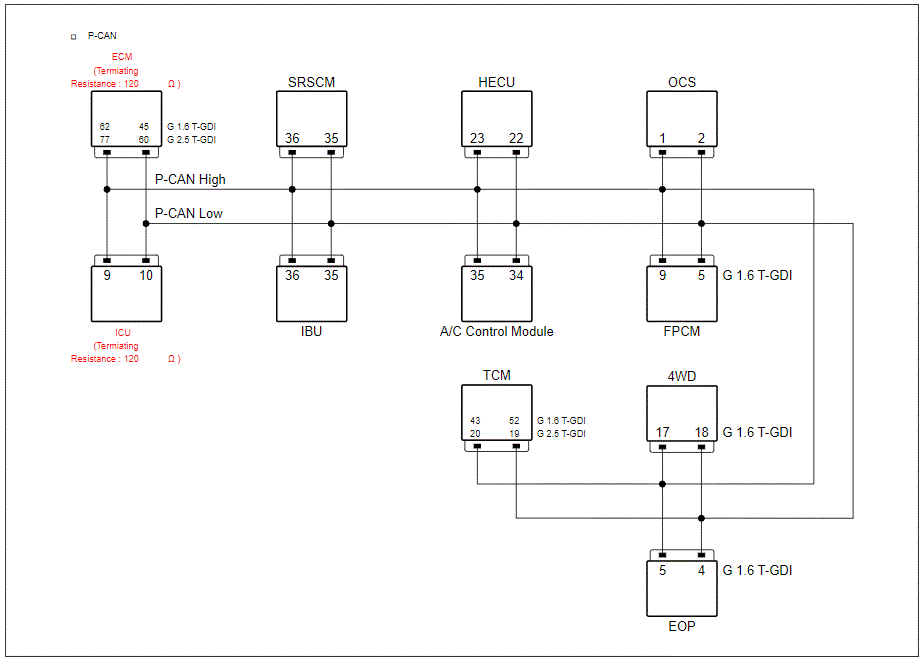

• Go to "P-CAN Communication Circuit Inspection" procedure below.

No Good

• Repair open or short in circuit and then go to "Verification Of Repair " procedure.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

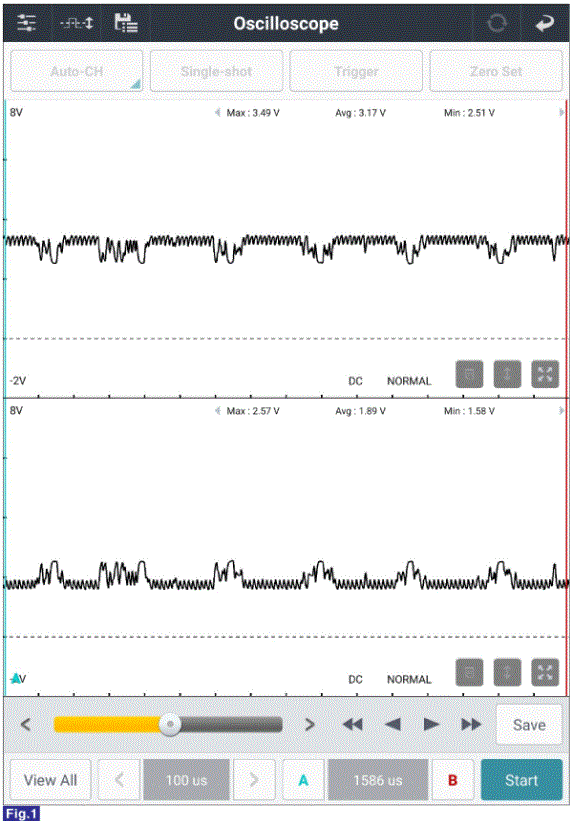

Good

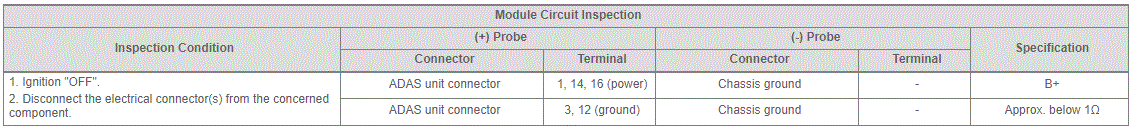

• Go to "Module Circuit Inspection" procedure below.

No Good

• Repair open or short in circuit and then go to "Verification Of Repair " procedure.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Repair " procedure.

No Good

• Repair open or short in circuit and then go to "Verification Of Repair " procedure.
• If no problems were found with the circuits or connectors, replace the ADAS unit and go to "Verification Of Repair " procedure.
