Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
1. Engine "ON".	1. Connect KDS to Data Link Connector (DLC). 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

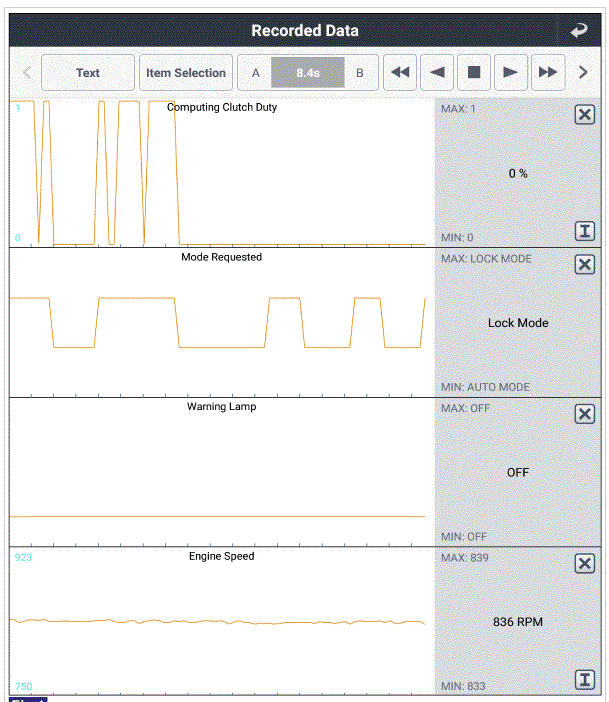

Fig.1) Check the items in the 4WD current data

Good

• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet.

• Repair as necessary and then go to "Verification Of Repair " procedure.

Noo Good

• Go to "Wiring Inspection " procedure.
