Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to Data Link Connector (DLC). Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig.1

G00659853

Courtesy of KIA MOTORS AMERICA, INC.

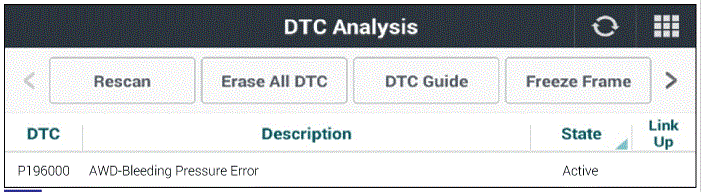

Fig.1) DTC status

Active Fault

• Go to "Monitor DTC Status " procedure.

History/Pending Fault

• Go to "Verification Of Repair " procedure.
