Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Engine "ON". | 1. Connect KDS to Data Link Connector (DLC). 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS. |
Fig.1 |

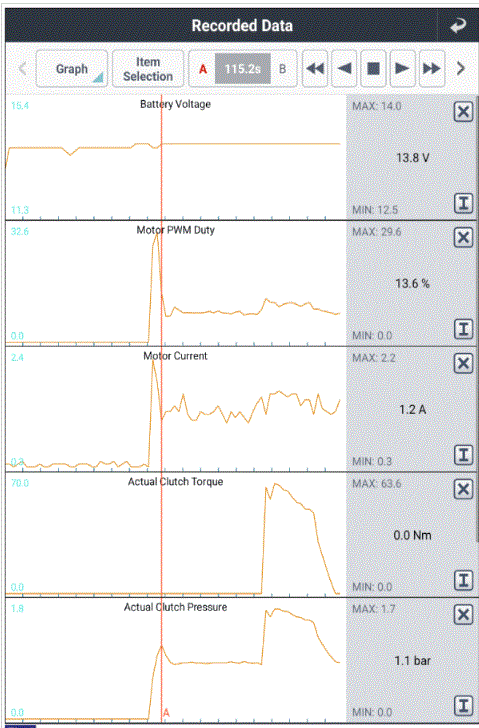

Fig.1) AWD motor current data when changing from 2WD to 4WD while parked
Good
• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then go to "Verification Of Repair ".
No Good
• Go to "System Inspection " procedure.
