Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". | 1. Connect KDS to Data Link Connector (DLC). 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS. |
Fig.1 |

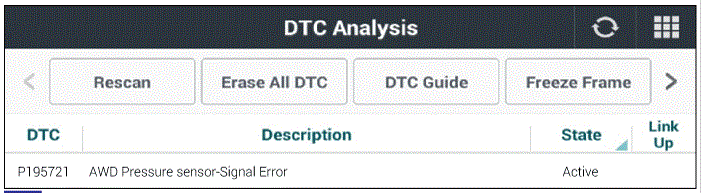

Fig.1) DTC status
Active Fault
• Go to "Monitor KDS Data " procedure.
History/Pending Fault
• Go to "Verification Of Repair " procedure.
