Repair Procedures: Installation

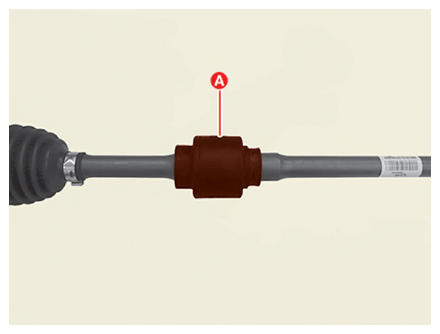

Install the dynamic damper (A).

Courtesy of KIA MOTORS AMERICA, INC.

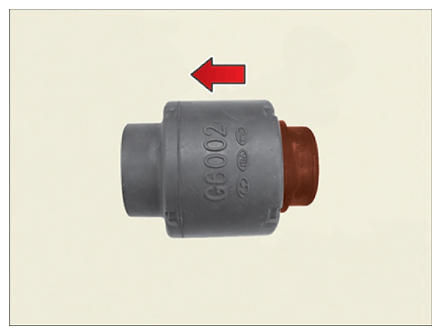

NOTE: When installing the dynamic damper, install it in the direction of the arrow. Installing in the wrong direction can cause secondary quality problems.

Courtesy of KIA MOTORS AMERICA, INC.

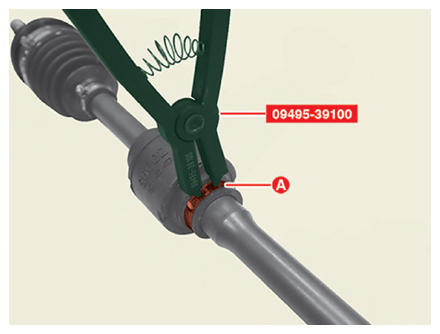

Install the dynamic damper band (A) using SST (09495-39100).

Courtesy of KIA MOTORS AMERICA, INC.

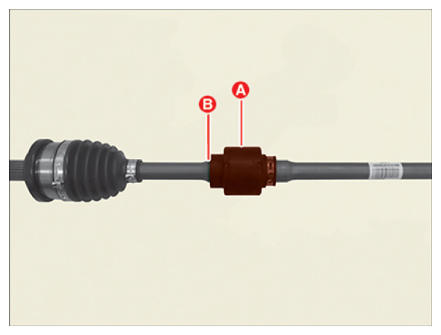

NOTE: When installing the dynamic damper (A), make sure that the damper fits into the groove (B).

Courtesy of KIA MOTORS AMERICA, INC.
Install the transaxle side joint.
(Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")
Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
