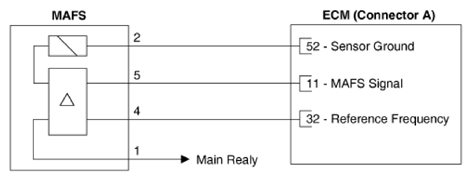

Home >> Kia >> 2024 >> Forte GT Line >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Mass Air Flow Sensor (MAFS) >> Schematic Diagrams >> Circuit Diagram >> Notes
