Components And Components Location: Component

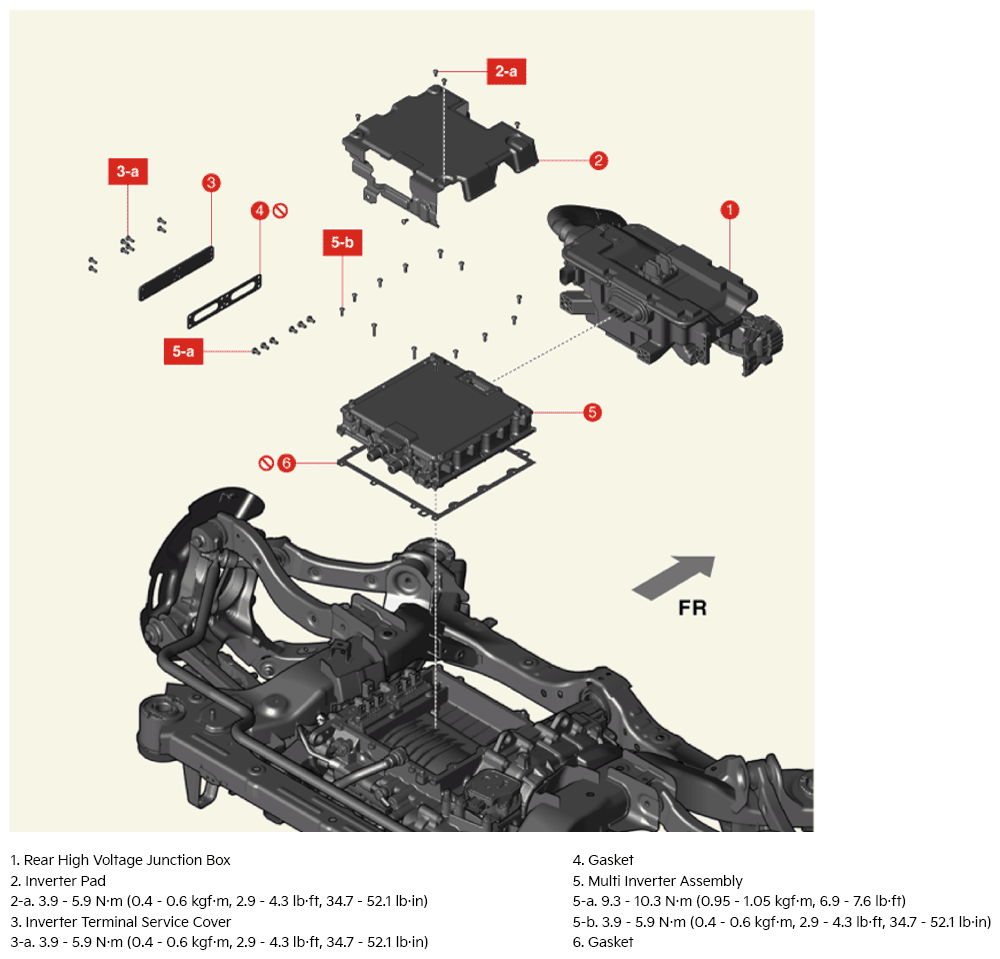

Fig 1: Multi Inverter Assembly Components Location With Torque Specifications

G16898035

Courtesy of KIA MOTORS AMERICA, INC.
