Home >> Kia >> 2024 >> EV9 Light >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Components And Components Location >> Component

Components And Components Location: Component

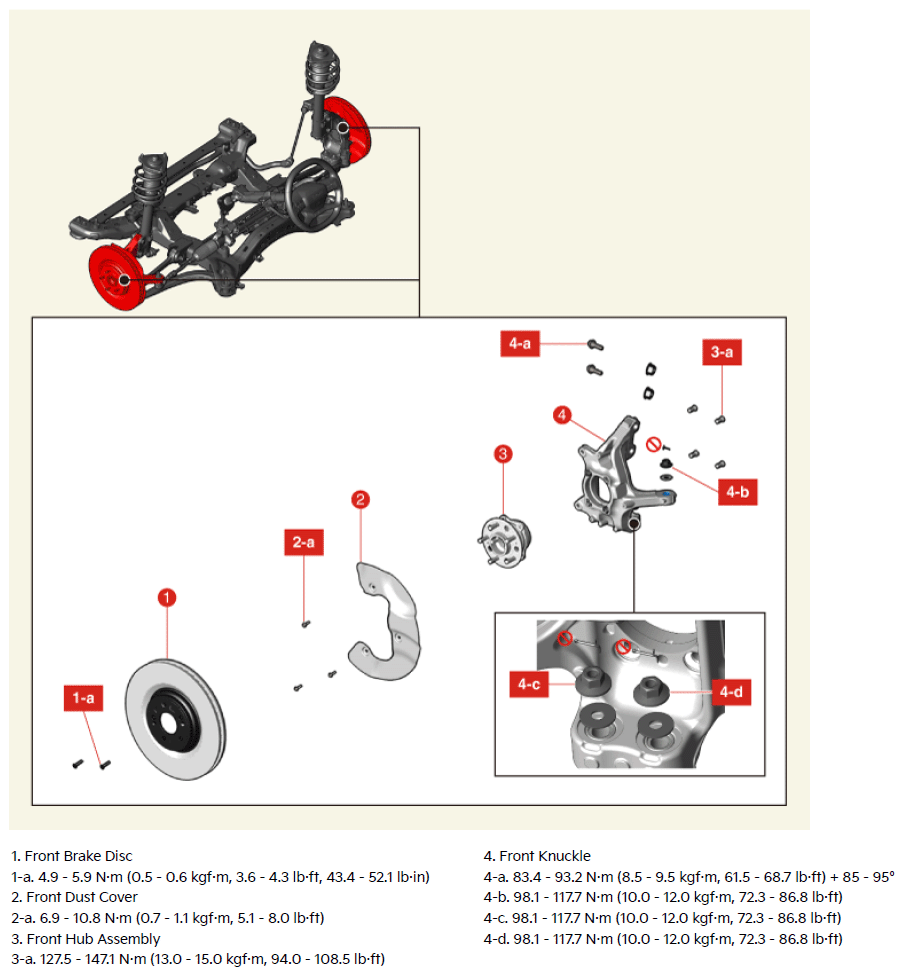

Fig 1: Front Axle Assembly Components Location With Torque Specifications

G16893697

Courtesy of KIA MOTORS AMERICA, INC.
