Components And Components Location

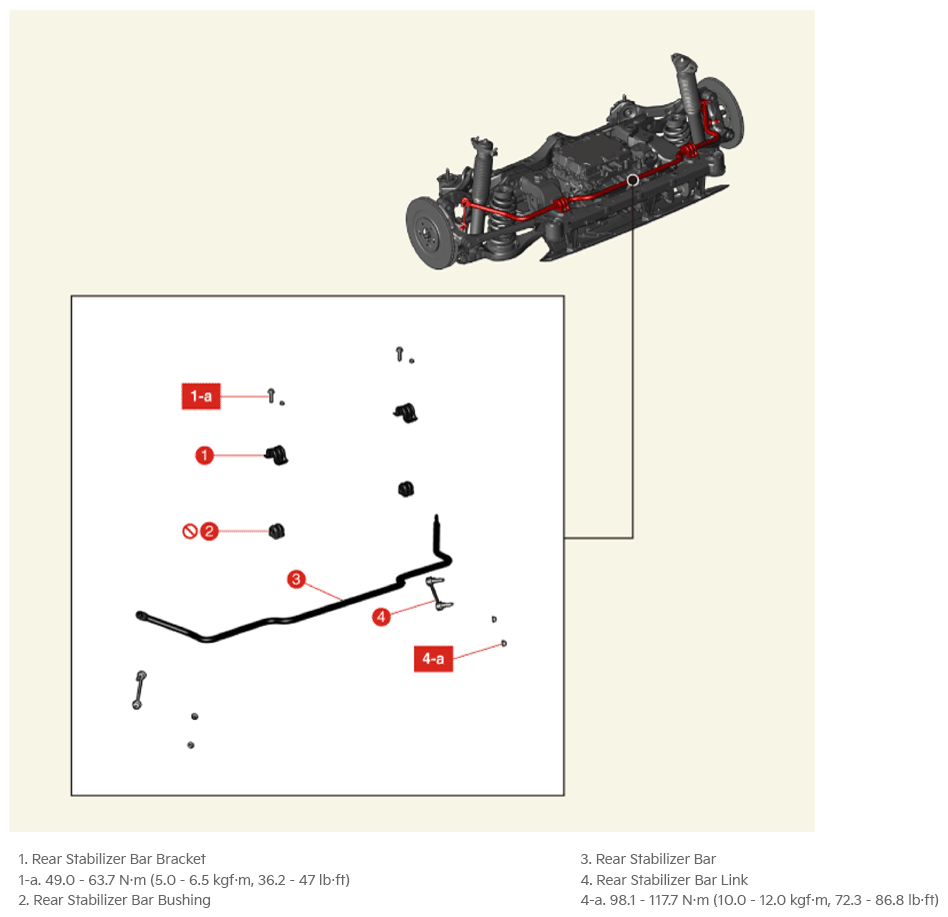

Fig 1: Rear Stabilizer Bar Components Location With Torque Specifications

G16895432

Courtesy of KIA MOTORS AMERICA, INC.
