Front Suspension: Alignment: Adjustment: [Front]: Kingpin
The king pin angle cannot be adjusted. If the measured caster exceeds the standard limit, repair or replace the relevant parts and inspect the wheel alignment again.

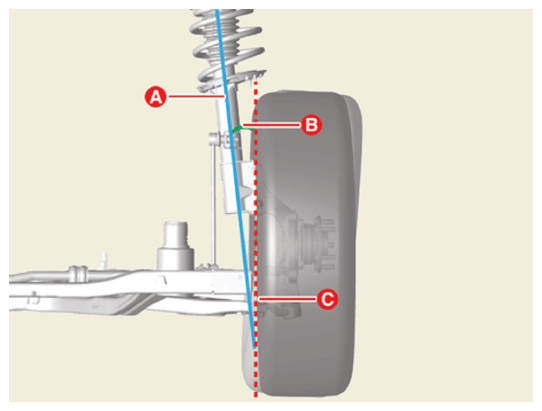

Kingpin Angle:
12.33 - 13.33°
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Item |
Description |
| A |
Steering Center Line |
| B |
Kingpin |
| C |
Center line |
