Disassembly & Reassembly: Disassembly

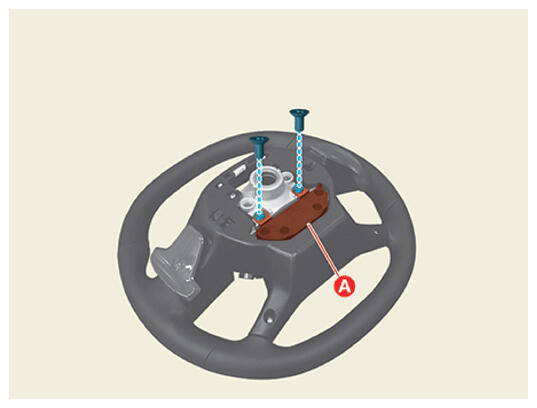

  1. Remove the steering wheel dynamic damper (A) after removing the screws.
    G16895589Courtesy of KIA MOTORS AMERICA, INC.

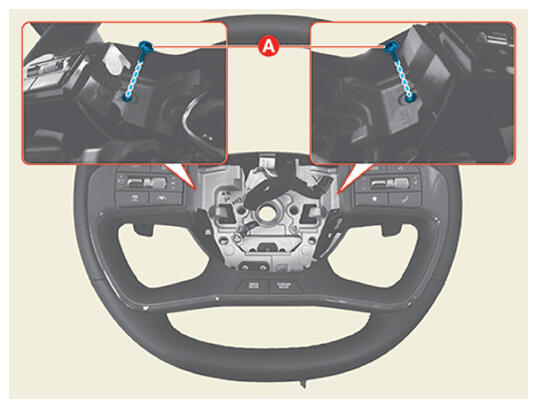

  2. Remove the paddle shift switch mounting screws (A).
    G16895590Courtesy of KIA MOTORS AMERICA, INC.

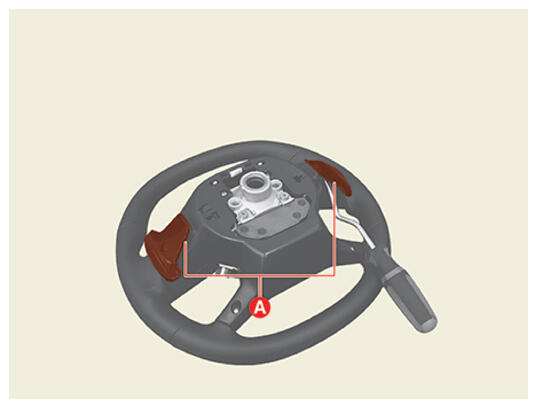

  3. Separate the paddle shifter switch (A) with a suitable tool.
    G16895591Courtesy of KIA MOTORS AMERICA, INC.

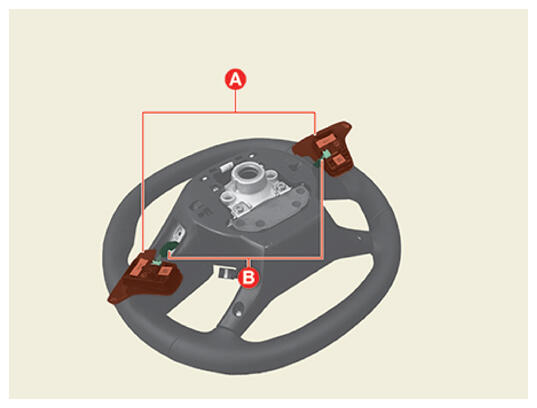

  4. Disconnect the paddle shifter switch connector (B) then remove the paddle shifter switch (A).
    G16895592Courtesy of KIA MOTORS AMERICA, INC.

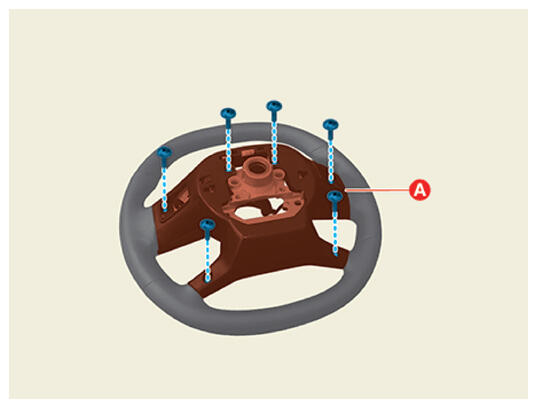

  5. Remove the steering wheel lower cover (A) after removing the screws.
    G16895593Courtesy of KIA MOTORS AMERICA, INC.

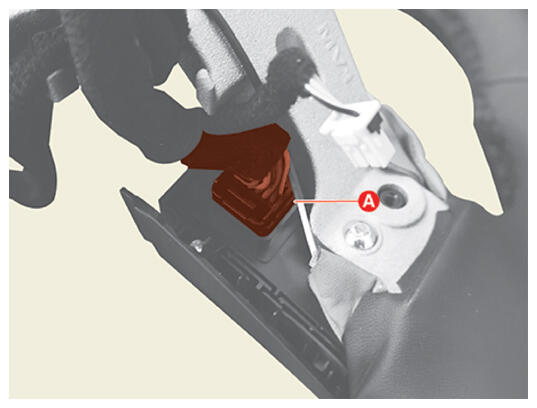

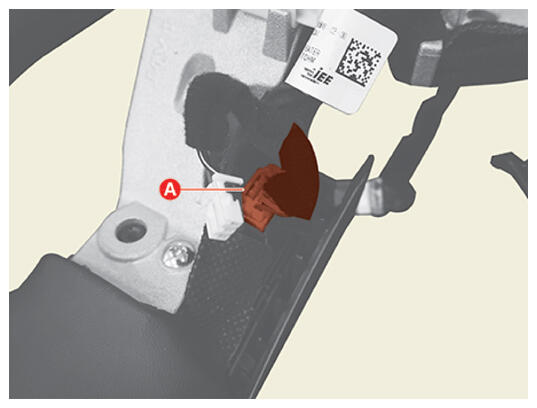

  6. Disconnect the remote control switch connectors (A).
    G16895594Courtesy of KIA MOTORS AMERICA, INC.
    G16895595Courtesy of KIA MOTORS AMERICA, INC.

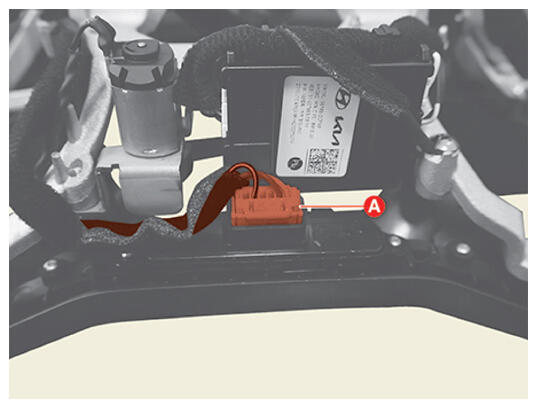

  7. Disconnect the drive mode switch connector (A).
    G16895596Courtesy of KIA MOTORS AMERICA, INC.

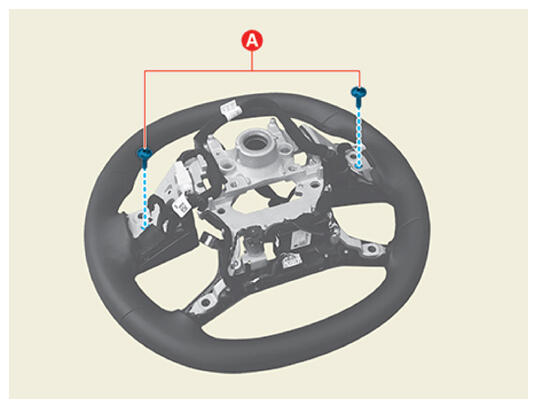

  8. Remove the Steering Wheel Remote Control (SWRC) switch and bezel screws (A).
    G16895597Courtesy of KIA MOTORS AMERICA, INC.

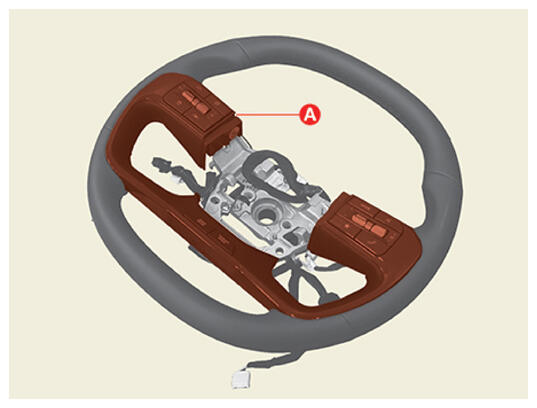

  9. Remove the steering wheel remote control (SWRC) switch and bezel (A).
    G16895598Courtesy of KIA MOTORS AMERICA, INC.

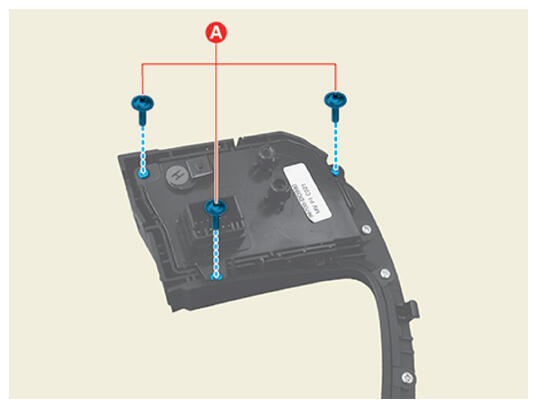

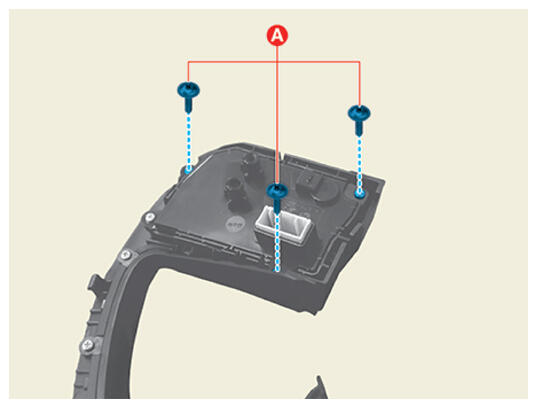

  10. Remove the steering wheel remote control (SWRC) switch screws (A).
    G16895599Courtesy of KIA MOTORS AMERICA, INC.
    G16895600Courtesy of KIA MOTORS AMERICA, INC.

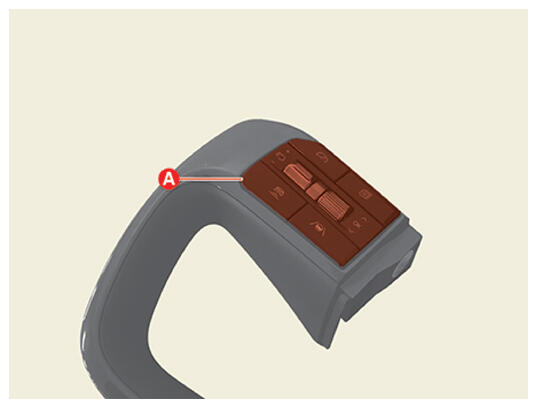

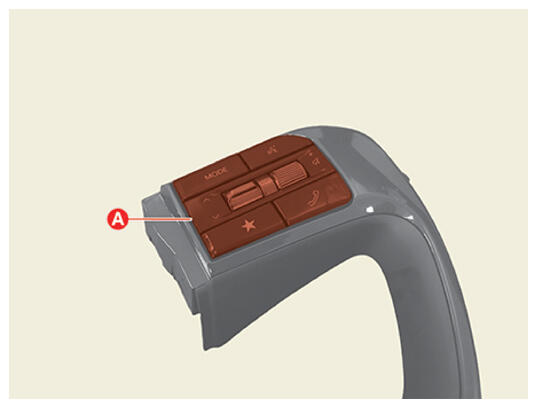

  11. Remove the SWRC switches (A).
    G16895601Courtesy of KIA MOTORS AMERICA, INC.
    G16895602Courtesy of KIA MOTORS AMERICA, INC.

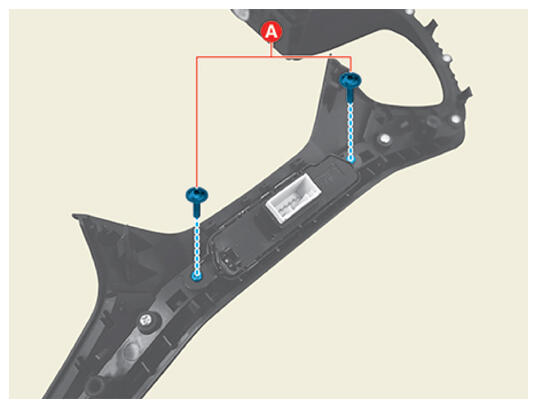

  12. Remove the drive mode switch screws (A).
    G16895603Courtesy of KIA MOTORS AMERICA, INC.

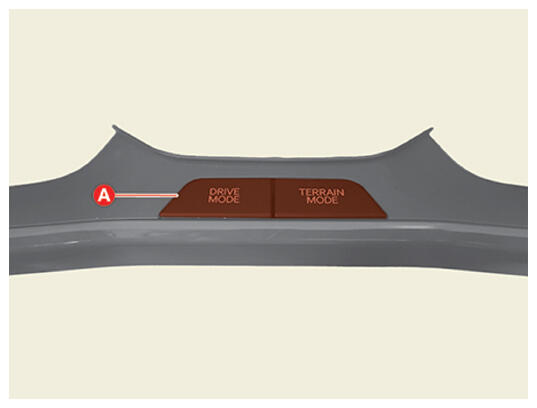

  13. Remove the drive mode switch (A).
    G16895604Courtesy of KIA MOTORS AMERICA, INC.

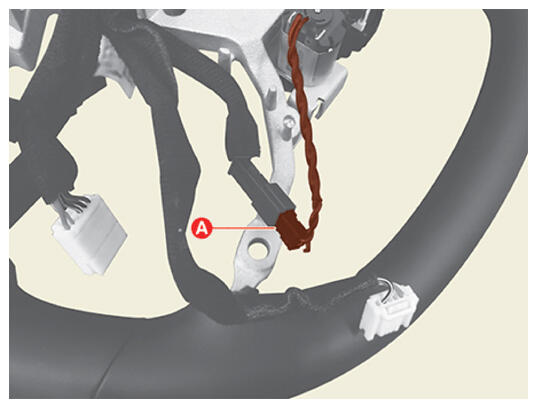

  14. Disconnect the haptic motor connector (A).
    G16895605Courtesy of KIA MOTORS AMERICA, INC.

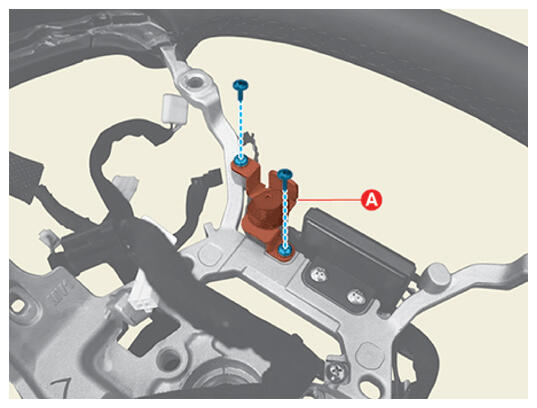

  15. Remove the haptic motor (A) after removing the screws.
    G16895606Courtesy of KIA MOTORS AMERICA, INC.

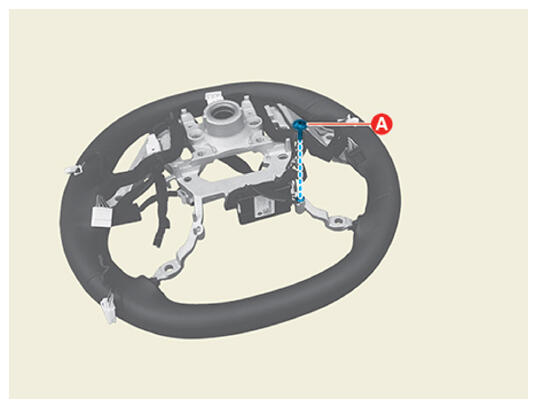

  16. Remove the extension wiring ground screw (A).
    G16895607Courtesy of KIA MOTORS AMERICA, INC.

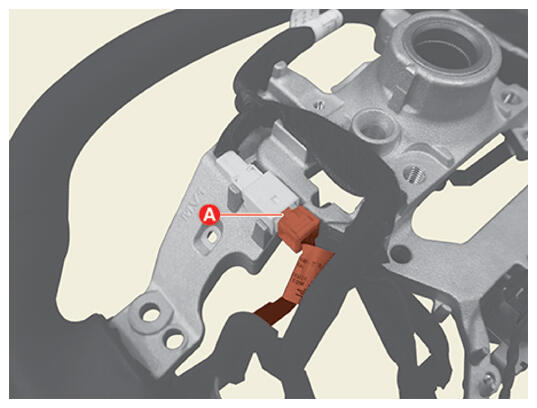

  17. Disconnect the steering wheel extension wiring connector (A).
    G16895608Courtesy of KIA MOTORS AMERICA, INC.

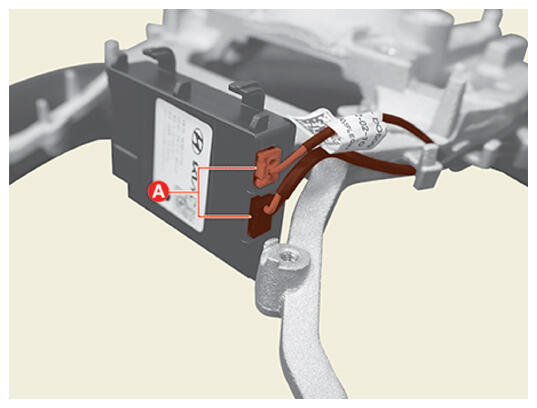

  18. Disconnect the Hands on Detector (HoD) controller connector (A).
    G16895609Courtesy of KIA MOTORS AMERICA, INC.

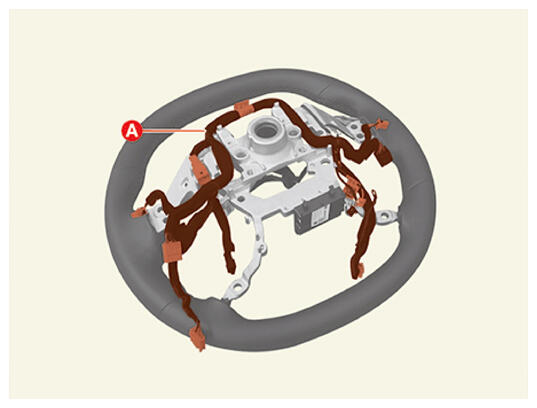

  19. Remove the steering wheel extension wiring (A).
    G16895610Courtesy of KIA MOTORS AMERICA, INC.

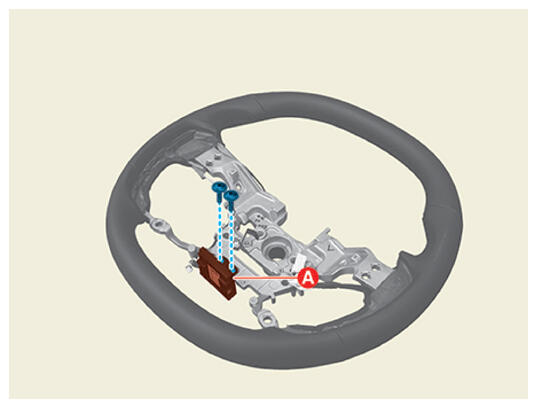

  20. Remove the HoD controller (A) after removing the screws.
    G16895611Courtesy of KIA MOTORS AMERICA, INC.
