ESC Operation: Notes

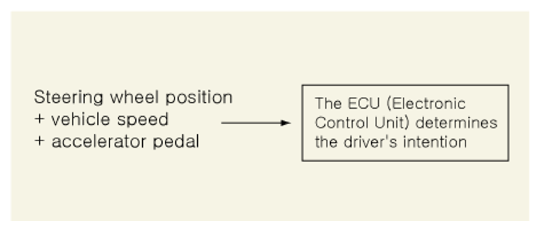

The ESC analyzes the driver's intentions.

Courtesy of KIA MOTORS AMERICA, INC.

ESC-equipped Vehicle Performance Analysis

Courtesy of KIA MOTORS AMERICA, INC.

Vehicle attitude control through ESC braking force

• HECU calculates necessary countermeasures.
• The hydraulic modulator rapidly adjusts the braking force to each wheel independently.
• The engine output is controlled through the communication line connected to the engine.

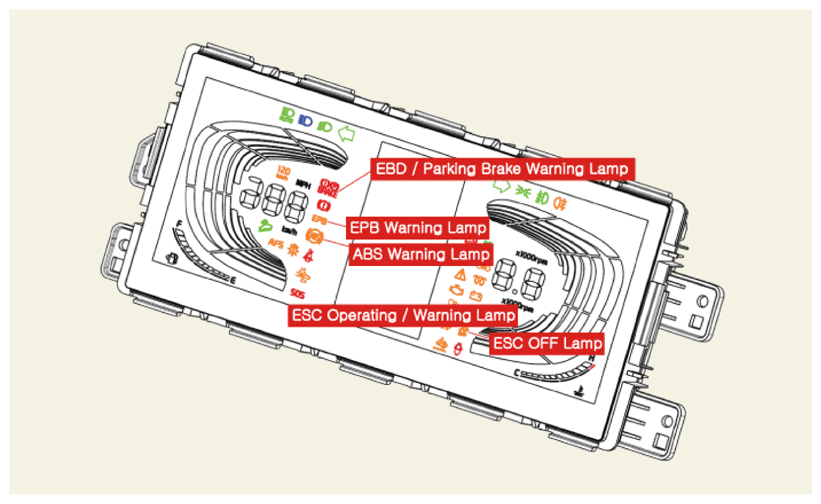

Warning Lamp Control

Courtesy of KIA MOTORS AMERICA, INC.
